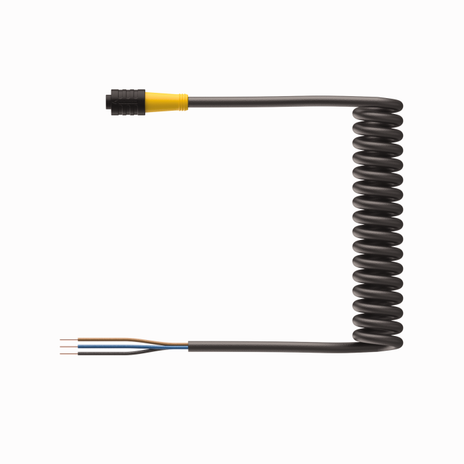

Turck PKG 3Z-3/S90-SP
SKU: CS3826159MPN: PKG 3Z-3/S90-SPAlternate Part #: U0068
U0068 - CORD,M8PICOFAST
$51.11
UnitAvailable on backorder
Product Details
Actuator and Sensor Cordset
Connection Coil Cordset

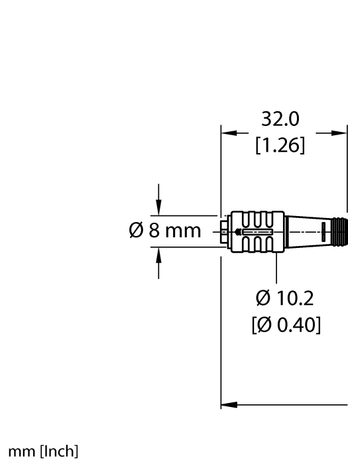

- M8, Female, Straight, 3-pin
- Snap-on Connector with Sleeve Lock
- General Purpose Cable
- TPU jacket, Black, 4X26 AWG
- -40 Cold Bend Rating
- Flame Ratings: UL1061, CSA FT1
- Flexlife® and C-Track Approved
Attributes
| Approvals | UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS |
| Cable Diameter | Ø 4.19 mm |
| Cable Jacket | TPU, Black |
| Connector Body | Plastic, TPU, Yellow |
| Current | 2 A |
| Design | Single-ended |
| Ecl Ss Code V5 1 4 | 27250107 -/- Connection cable sensor-actuator |
| Number Of Conductors | 4.0000 |
| Number Of Contacts | 3 |
| Protection Class When Coupled | IP67 |
| Voltage | 125 V |
Specifications
| SKU | CS3826159 |
|---|---|
| MPN | PKG 3Z-3/S90-SP |
| Alternate Part # | U0068 |
