All ProductsTurck

Turck PKG 3M-3.3

SKU: CS3825694MPN: PKG 3M-3.3Alternate Part #: U-88412

U-88412 - CORD,M8PICOFAST

Turck PKG 3M-0.1, PKG 3M-0.16-PSG 3M/S90, PKG 3M-0.16-PSG 3M/S90/S101, PKG 3M-0.2, PKG 3M-0.2-PSG 3M, PKG 3M-0.2-PSG 3M/S760/S771, PKG 3M-0.2-PSG 3M/S90, PKG 3M-0.2-PSG 3M/S90/S101, PKG 3M-0.2-PSG 4M/S90, PKG 3M-0.2/S760, PKG 3M-0.2/S90, PKG 3M-0.2/S90/S101, PKG 3M-0.25-PSG 3M/S90, PKG 3M-0.27-PSG 3M/S90, PKG 3M-0.28-PSG 3M/S90
Turck PKG 3M-0.1, PKG 3M-0.2, PKG 3M-0.3, PKG 3M-0.4, PKG 3M-0.5, PKG 3M-0.6, PKG 3M-0.8, PKG 3M-1.2, PKG 3M-1.5, PKG 3M-1.83, PKG 3M-11, PKG 3M-13, PKG 3M-15, PKG 3M-16, PKG 3M-19
Turck EKRB-A4.300-GC2K-10, EKRB-A4.300-GC2K-2, EKRB-A4.300-GC2K-5, EKRB-A4.300-GU2K-10, EKRB-A4.300-GU2K-2, EKRB-A4.300-GU2K-5, EKRP-A4.300-GC2K-10, EKRP-A4.300-GC2K-2, EKRP-A4.300-GC2K-5, EKRT-A4.300-GC2K-10, EKRT-A4.300-GC2K-2, EKRT-A4.300-GC2K-20, EKRT-A4.300-GC2K-23, EKRT-A4.300-GC2K-25, EKRT-A4.300-GC2K-5
Turck EKRB-A4.300-GC2K-10, EKRB-A4.300-GC2K-2, EKRB-A4.300-GC2K-5, EKRB-A4.300-GU2K-10, EKRB-A4.300-GU2K-2, EKRB-A4.300-GU2K-5, EKRB-A4.400-GC2K-10, EKRB-A4.400-GC2K-2, EKRB-A4.400-GC2K-20, EKRB-A4.400-GC2K-30, EKRB-A4.400-GC2K-4, EKRB-A4.400-GC2K-5, EKRB-A4.400-GC2K-6, EKRB-A4.400-GC2K-8, EKRB-A4.400-GC8K-10
Turck PKG 3M-0.1, PKG 3M-0.16-PSG 3M/S90, PKG 3M-0.16-PSG 3M/S90/S101, PKG 3M-0.2, PKG 3M-0.2-PSG 3M, PKG 3M-0.2-PSG 3M/S760/S771, PKG 3M-0.2-PSG 3M/S90, PKG 3M-0.2-PSG 3M/S90/S101, PKG 3M-0.2-PSG 4M/S90, PKG 3M-0.2/S760, PKG 3M-0.2/S90, PKG 3M-0.2/S90/S101, PKG 3M-0.25-PSG 3M/S90, PKG 3M-0.27-PSG 3M/S90, PKG 3M-0.28-PSG 3M/S90
Turck PKG 3M-0.1, PKG 3M-0.2, PKG 3M-0.3, PKG 3M-0.4, PKG 3M-0.5, PKG 3M-0.6, PKG 3M-0.8, PKG 3M-1.2, PKG 3M-1.5, PKG 3M-1.83, PKG 3M-11, PKG 3M-13, PKG 3M-15, PKG 3M-16, PKG 3M-19
$25.97
Unit
Available on backorder
remove
add

Product Details

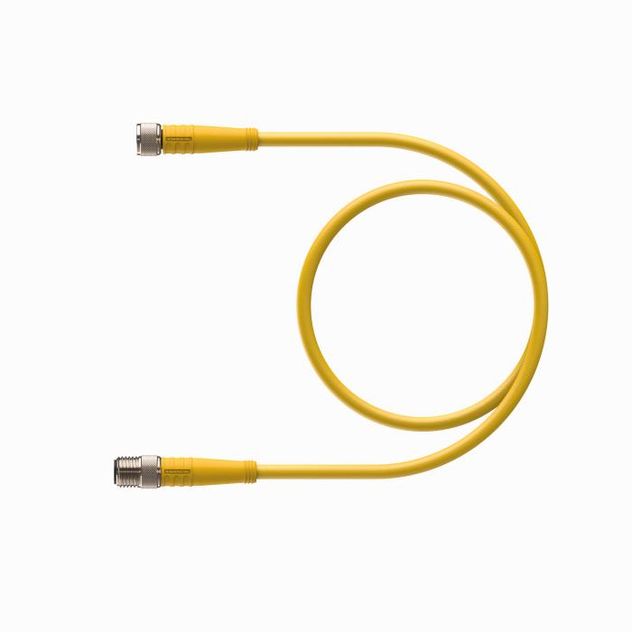

Actuator and Sensor Cordset

Connection Cable

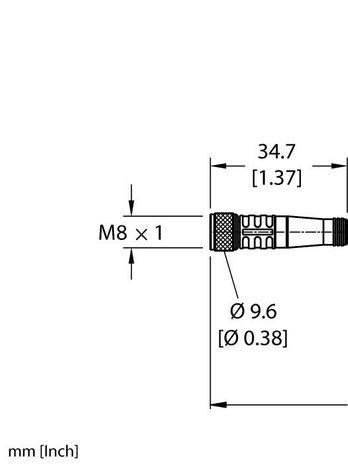

  • M8, Female, Straight, 3-pin
  • Threaded Connector
  • General Purpose Cable
  • Yellow PVC jacket, 3X24 AWG
  • -40 Cold Bend Rating
  • Flame Ratings: UL1061, CSA FT1
  • Flexlife® and C-Track Approved

Attributes

Approvals UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
Cable Diameter Ø  4.39 mm
Cable Jacket PVC, Yellow
Connector Body Plastic, TPU, Yellow
Coupling Nut Brass, CuZn, Nickel-plated
Current 4 A
Design Single-ended
Ecl Ss Code V5 1 4 27250107 -/- Connection cable sensor-actuator
Number Of Conductors 3.0000
Number Of Contacts 3
Protection Class When Coupled IP68
Voltage 125 V

Specifications

SKUCS3825694
MPNPKG 3M-3.3
Alternate Part #U-88412
