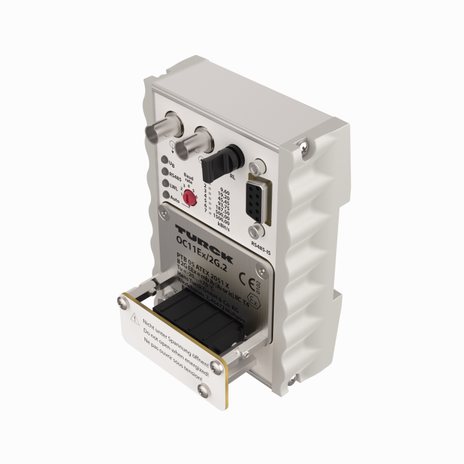

Turck OC11EX/2G.2
SKU: CS3814712MPN: OC11EX/2G.2Alternate Part #: 6890427UPC/EAN: 4047101261172
6890427 - ACCESS, GEN, PROFIBUS-DP, ZONE
$2,271.44
UnitAvailable on backorder
Product Details
excom I/O System
PROFIBUS-DP fiber-optic coupler for zone 1
- Device for data transmission between electrical and optical fieldbus circuits
- Power supply of max. 31 nodes
- OM1 (62.5/125) for transmitting data over distances up to 2500 m
- OM2 (50/125) for transmitting data over distances up to 1500 m
- Mounting in zone 1 possible
- Note: Idle level corresponds to active light!
Attributes
| Ambient Temperature | -20…+70 °C |
| Approvals | ATEX, cFMus, cFM, IECEx, CCC, INMETRO, KOSHA, EAC Ex, DNV GL, BV, LR, KR, KCC, CE |
| Connection Technology Signal | D-Sub |
| Customs Tariff Number | 85176200000.0000 |
| Device Type | Coupler |
| Ecl Ss Code V5 1 4 | 27250312 -/- Communication interface, active |
| Fieldbus Protocol | PROFIBUS-DP |
| Protection Class | IP20 |
Specifications
| SKU | CS3814712 |
|---|---|
| MPN | OC11EX/2G.2 |
| Alternate Part # | 6890427 |
| UPC/EAN | 4047101261172 |
