Turck LI100P1-Q17LM1-LIU5X2-0.3-RS5
SKU: CS3811318MPN: LI100P1-Q17LM1-LIU5X2-0.3-RS5Alternate Part #: 1590726UPC/EAN: 4047101245769
1590726 - PROFILE STYLE
$520.19
UnitAvailable on backorder
Product Details

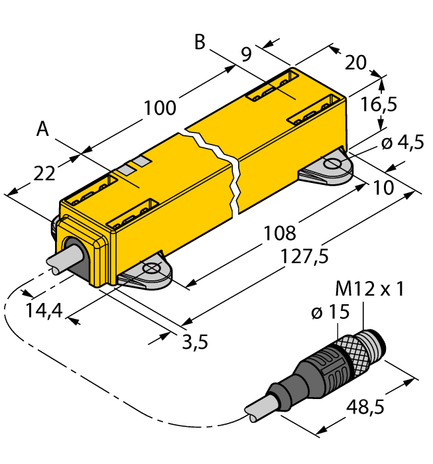

Inductive Linear Position Sensor
- Rectangular, plastic
- Versatile mounting options
- Positioning element P1-Li-QR14/Q17L, mounting elements 2 × M1.1-Q17L as well as 2 × M1.2-Q17L included in delivery
- LED indicates measuring range
- Immune to electromagnetic interference
- Extremely short blind zones
- Resolution, 12-bit
- 4‐wire, 15…30 VDC
- Analog output
- Programmable measuring range
- 0…10 V and 4…20 mA
- Cable with male end M12 x 1
Attributes
| Ambient Temperature | -25…+70 °C |
| Current Output | 4…20 mA |
| Customs Tariff Number | 90318080000.0000 |
| Design | Profile |
| Ecl Ss Code V5 1 4 | 27270702 -/- Inductive linear position sensor |
| Electrical Connection | Cable with connector, M12 × 1 |
| Housing Material | Plastic, PC-GF10 |
| Measuring Principle | Inductive |
| Measuring Range | 100 mm [3.94 in] |
| Operating Voltage | 15…30 VDC |
| Output Function | Analog output |
| Protection Class | IP67 |
| Voltage Output | 0…10 V |
Specifications
| SKU | CS3811318 |
|---|---|
| MPN | LI100P1-Q17LM1-LIU5X2-0.3-RS5 |
| Alternate Part # | 1590726 |
| UPC/EAN | 4047101245769 |
