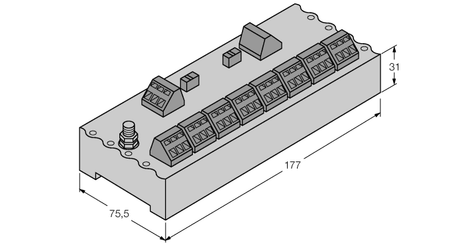

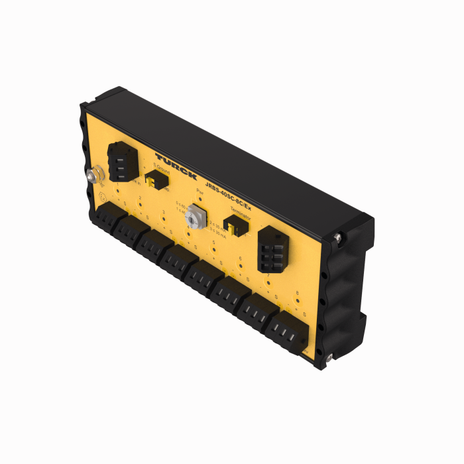

Turck JRBS-40SC-8C/EX
SKU: CS3810317MPN: JRBS-40SC-8C/EXAlternate Part #: 6611453UPC/EAN: 4047101203127
6611453 - DEVICE COUPLER, FF + PA, ZONE
$793.53
UnitAvailable on backorder
Product Details
FOUNDATION fieldbus and PROFIBUS-PA
IP20 junction box, 8-channel
- Junction box for DIN rail mounting
- Short-circuit protection per drop line/spur
- Switch-in terminating resistor
- Cable shielding: Capacitive or direct connection with housing potential selectable via switch
- aluminium housing
- Entity and FISCO compliant according to IEC 60079-11
Attributes
| Ambient Temperature | -25…+70 °C |
| Approvals | ATEX, Ex-Approval |
| Connection Technology Signal | Cage clamp terminal |
| Customs Tariff Number | 85369095000.0000 |
| Device Type | Active fieldbus junction box |
| Ecl Ss Code V5 1 4 | 27250201 -/- Network components (fieldbus) |
| Fieldbus Protocol | FOUNDATION fieldbus, PROFIBUS-PA |
| Protection Class | IP20 |
Specifications
| SKU | CS3810317 |
|---|---|
| MPN | JRBS-40SC-8C/EX |
| Alternate Part # | 6611453 |
| UPC/EAN | 4047101203127 |
