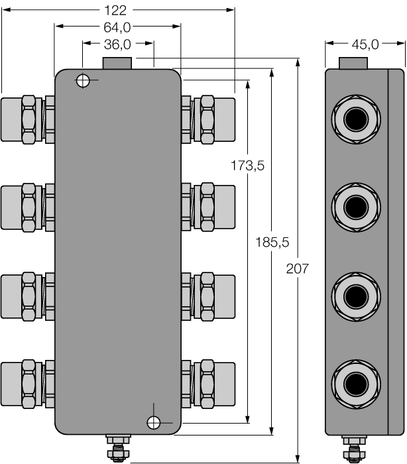

Turck JBBS-48-T615B/EX
SKU: CS3810200MPN: JBBS-48-T615B/EXAlternate Part #: 6611423UPC/EAN: 4047101006025
6611423 - WIRE BLOCK, PROFIBUS PA , ZONE
$656.17
UnitAvailable on backorder
Product Details
PROFIBUS-PA
IP67 junction box, 6-channel
- Junction box for wall mounting with PVC cable glands M20 x 1.5
- Integrated terminating resistor (activatable)
- Cable shielding: Capacitive or direct connection to housing potential selectable via switch
- Isolated support terminal for optional protective conductor incorporated in cable
- Powder-coated die-cast aluminium housing
- Pressure compensation element protects against condensation
- Connection of the housing potential via M5 x 1 bolt
- Entity and FISCO compliant according to IEC 60079-11
Attributes
| Ambient Temperature | -40…+70 °C |
| Approvals | ATEX |
| Connection Technology Signal | Cable gland |
| Customs Tariff Number | 85369095000.0000 |
| Device Type | Passive fieldbus junction box |
| Ecl Ss Code V5 1 4 | 27250201 -/- Network components (fieldbus) |
| Fieldbus Protocol | PROFIBUS-PA |
| Protection Class | IP67 |
Specifications
| SKU | CS3810200 |
|---|---|
| MPN | JBBS-48-T615B/EX |
| Alternate Part # | 6611423 |
| UPC/EAN | 4047101006025 |
