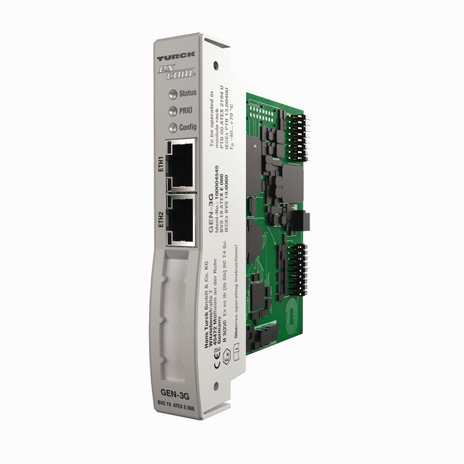

Turck GEN-3G
SKU: CS3806294MPN: GEN-3GAlternate Part #: 100004545UPC/EAN: 4047101501315
100004545 - GATEWAY, GEN, MULTIPROT ETHE
$1,195.78
UnitAvailable on backorder
Product Details
excom I/O System
Multiprotocol Gateway for Ethernet
- Gateway for Ethernet fieldbus communication
- Connection of the excom station to the Ethernet fieldbus
- Support for Ethernet protocols Modbus TCP, EtherNet/IP and PROFINET
- Integrated switch, 10/100 Mbps
- Two RJ45 connectors for fieldbus connection
Attributes
| Ambient Temperature | -40…+70 °C |
| Approvals | ATEX, cFMus, cFM, IECEx, CCC, INMETRO, KOSHA, EAC Ex, UKCA, CE |
| Connection Technology Signal | Screw terminal, Cage clamp terminal |
| Customs Tariff Number | 85389099990.0000 |
| Device Type | Gateway |
| Ecl Ss Code V5 1 4 | 27250312 -/- Communication interface, active |
| Fieldbus Protocol | EtherNet/IP, PROFINET, Modbus TCP |
| Protection Class | IP20 |
Specifications
| SKU | CS3806294 |
|---|---|
| MPN | GEN-3G |
| Alternate Part # | 100004545 |
| UPC/EAN | 4047101501315 |
You may also like

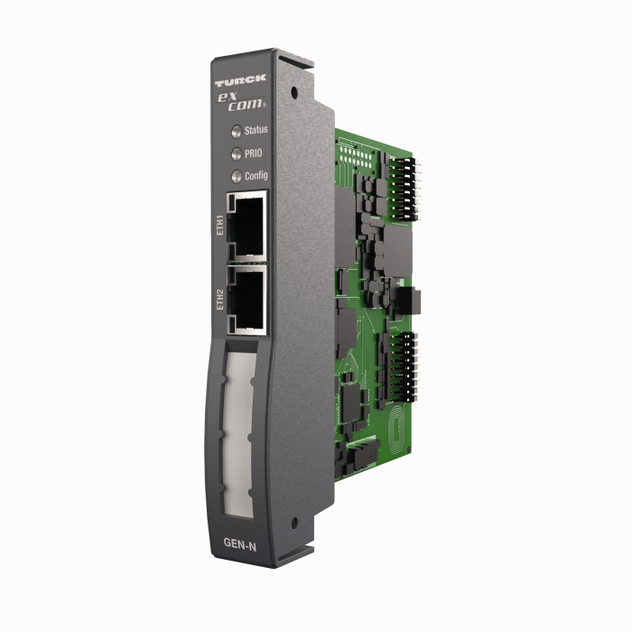

Turck GEN-N
$1,027.11Unit
Turck MT08-3G
$1,695.44Unit
Turck MT16-3G
$1,904.33Unit
Turck MT24-3G
$2,454.33Unit
Turck GDP-IS/FW2.3
$1,006.67UnitTurck GDP-NI/FW2.3
$934.22Unit
Turck OC11EX/3G.2 PROFIBUSKOPPLER
$2,271.44Unit

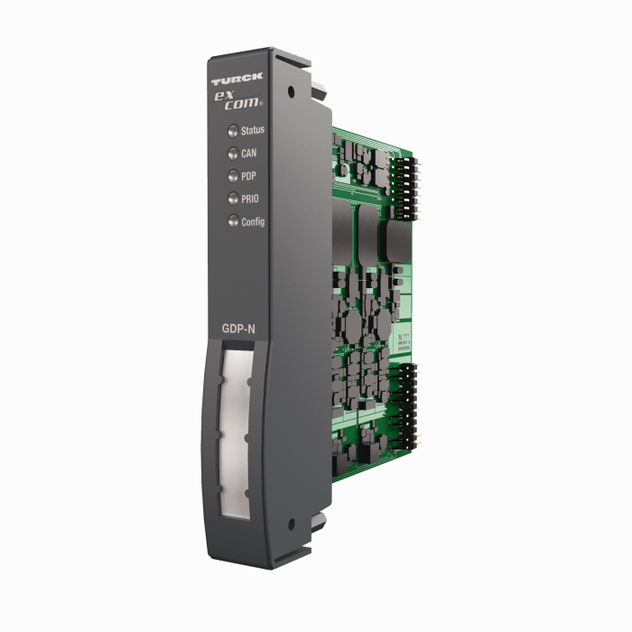

Turck GDP-N/FW2.3
$706.33UnitTurck PSM24-3G.1
$1,238.89Unit
Turck SC11EX-3G
$1,432.67Unit
Turck PSM24-3G
$1,104.67Unit

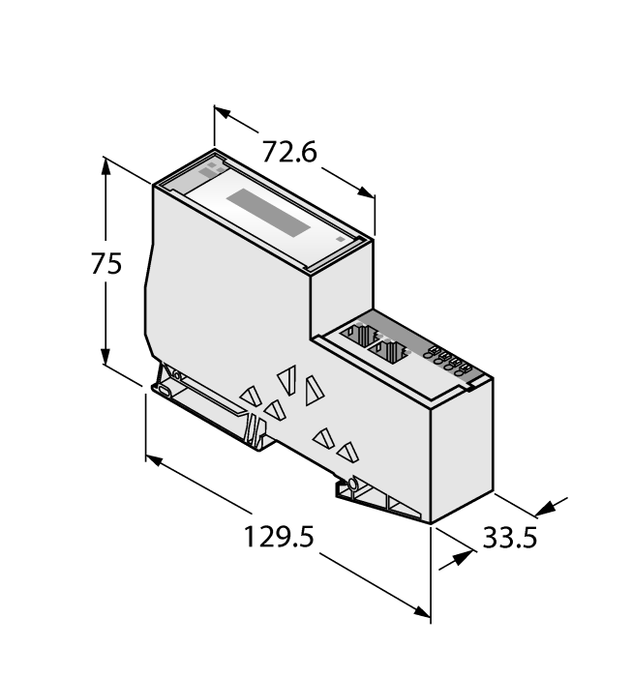

Turck BL20-E-GW-EN
