Turck FW-EWKPM0526-SA-P-0408
SKU: CS3806265MPN: FW-EWKPM0526-SA-P-0408Alternate Part #: 100009889UPC/EAN: 4047101513424
100009889 - FIELD WIREABLE,M12EUROFAST
$36.92
UnitAvailable on backorder
Product Details

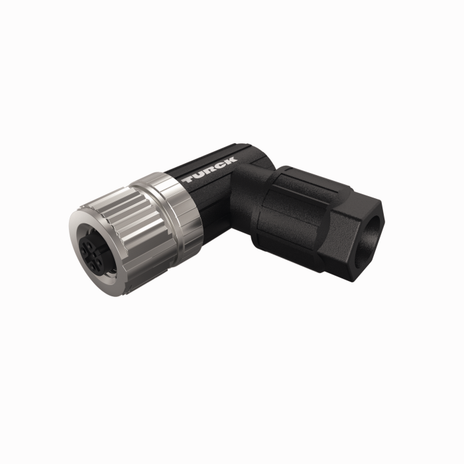

Field-Wireable Connector

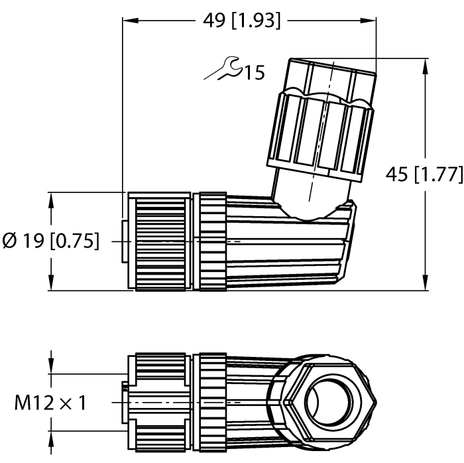

Female Connector M12 × 1, Angled
- Push-in connection
- A-coding
- 5-pin
- Flammability class acc. to UL 94 V0
- Cable feedthrough: 4.0…8.0 mm
- Terminal capacity:
- 0.14…0.75 mm² (without cable end sleeve) - 0.08…0.5 mm² (with cable end sleeve) + Approval: cULus + RoHS-compliant
Attributes
| Acceptable Cable Diameter | 4…8 mm |
| Application | Signal |
| Approvals | cULus |
| Connection Mode | Push-in connection |
| Connector A | Female, M12 × 1, Angled, A-code |
| Core Cross Section Clamping Ability | 0.14…0.75 mm² |
| Coupling Nut Screw Material | Die-cast Zinc, GD-Zn, Nickel-plated |
| Current | 4 A |
| Customs Tariff Number | 85366990990.0000 |
| Ecl Ss Code V5 1 4 | 27279201 -/- Connectivity (accessories sensors) |
| Housing Material | Plastic, PA 6.6 |
| Number Of Contacts | 5 |
| Voltage | 60 V |
Specifications
| SKU | CS3806265 |
|---|---|
| MPN | FW-EWKPM0526-SA-P-0408 |
| Alternate Part # | 100009889 |
| UPC/EAN | 4047101513424 |
