Turck FS100-300L-04-2UPN8-H1141

SKU: CS3805160MPN: FS100-300L-04-2UPN8-H1141Alternate Part #: 100001008UPC/EAN: 4047101446661

100001008 - CAL (IMM), COMP-MON, GEN., G

Turck FS100-300L-04-2UPN8-H1141
Turck FS100-300L-04-2UPN8-H1141
Turck FS100-300L-04-2UPN8-H1141
Turck FS100-300L-04-2UPN8-H1141
Contact us for pricing and availability

Product Details

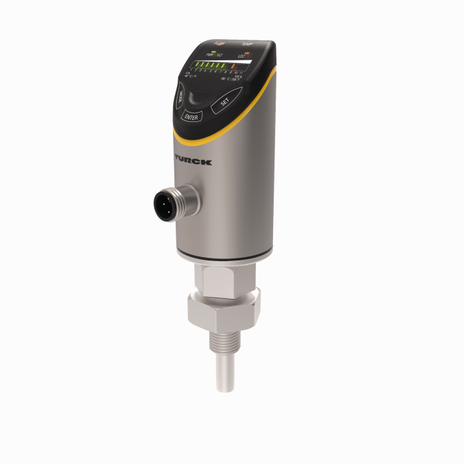

Flow Sensor

  • Screw-in adaptor with process connection G¼” male thread included in delivery
  • Sensor housing material 1.4404 (316L)
  • Medium contact material 1.4571 (316Ti)
  • Immersion depth 16.9 mm
  • Process value display with bar graph
  • Flow monitoring for liquid media
  • Protection classes IP66, IP67 and IP69K
  • Adjustment of flow speed via teach function
  • 10…33 VDC
  • NO/NC contact, PNP/NPN output, IO-Link
  • Connector, M12 × 1

Attributes

Ambient Temperature -40…+85 °C
Approvals CE, cULus
Communication Protocol IO-Link
Customs Tariff Number 90261021000.0000
Design With display (integrated probe)
Ecl Ss Code V5 1 4 27273190 -/- Flow meter (not classified)
Electrical Connection Connector, M12 × 1
Function Flow monitoring
Housing Material Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV
Medium liquids
Medium Temperature -25…+85 °C
Operating Voltage 10…33 VDC
Output Function NO/NC programmable, PNP/NPN
Process Connection G ¼’’ male thread
Protection Class IP66/IP67/IP69K

Specifications

SKUCS3805160
MPNFS100-300L-04-2UPN8-H1141
Alternate Part #100001008
UPC/EAN4047101446661
