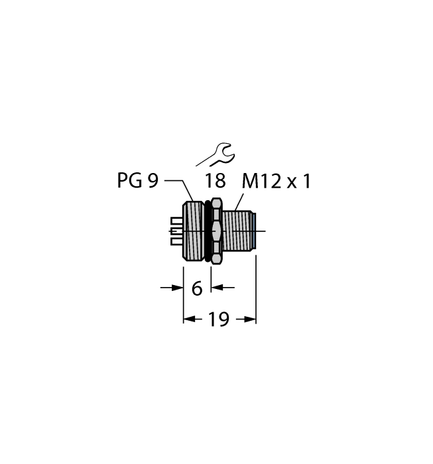

Turck FS 57
SKU: CS3805025MPN: FS 57Alternate Part #: U1132-00
U1132-00 - RECEPT,M12EUROFAST
$16.00
UnitAvailable on backorder
Product Details
DeviceNet™ Receptacle
Front Mount
- Male M12 eurofast Receptacle
- 5-pin, solderable
- For use in CAN (DeviceNet™, CANopen) applications
Attributes
| Application | Data |
| Approvals | RoHS |
| Connector A | Male, M12 × 1, A-code |
| Current | 4 A |
| Customs Tariff Number | 85366990990.0000 |
| Design | Single-ended |
| Ecl Ss Code V5 1 4 | 27250314 -/- Connection technology |
| Fieldbus Protocol | DeviceNet |
| Housing Material Finish | Brass, CuZn, Nickel-plated |
| Mounting Orientation | Front mount |
| Mounting Thread | PG9 |
| Number Of Contacts | 5 |
| Protection Class When Coupled | IP68 |
| Voltage | 250 V |
Specifications
| SKU | CS3805025 |
|---|---|
| MPN | FS 57 |
| Alternate Part # | U1132-00 |
You may also like
Turck FS 57-PCB KIT
$28.22Unit
Turck FS FS 57/M12
$25.33Unit

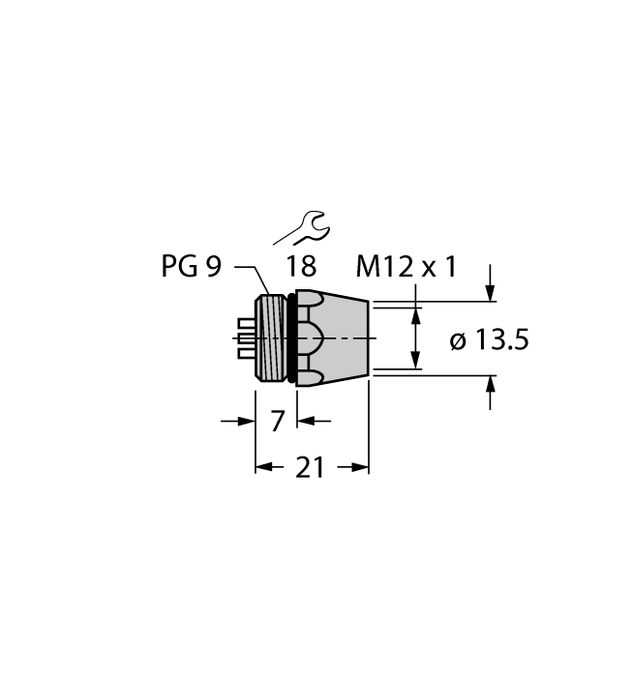

Turck FK 57
