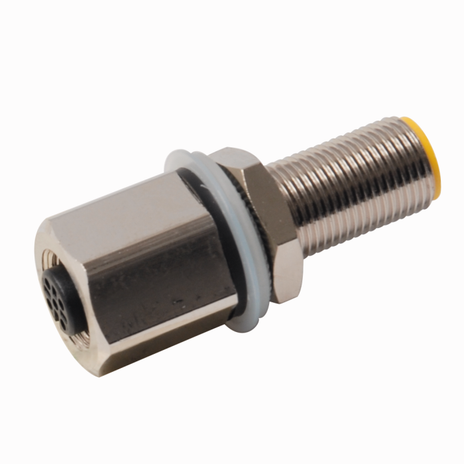

Turck FK FS 8/M12
SKU: CS3803112MPN: FK FS 8/M12Alternate Part #: U1135-3
U1135-3 - RECEPT,M12EUROFAST
$36.71
UnitAvailable on backorder
Product Details
Actuator and Sensor Receptacle
Panel Feed-through
- Female M12 eurofast Receptacle
- Male M12 eurofast Receptacle
Attributes
| Application | Signal |
| Approvals | CE, RoHS, UL Listed, UL 2238 |
| Connector A | Female, M12 × 1, Straight, A-code |
| Connector B | Male, M12 × 1 |
| Connector Body | Metal, CuZn, nickel-plated |
| Coupling Nut | Brass |
| Current | 1.5 A |
| Customs Tariff Number | 85366990990.0000 |
| Ecl Ss Code V5 1 4 | 27279201 -/- Connectivity (accessories sensors) |
| Housing Material Finish | Brass, CuZn, Nickel-plated |
| Mounting Orientation | Front mount |
| Mounting Thread | M12 × 1 |
| Mounting Thread B | M12 × 1 |
| Mounting Type | Rear mount |
| Number Of Contacts | 8 |
| Protection Class When Coupled | IP68 |
| Voltage | 36 V |
Specifications
| SKU | CS3803112 |
|---|---|
| MPN | FK FS 8/M12 |
| Alternate Part # | U1135-3 |
