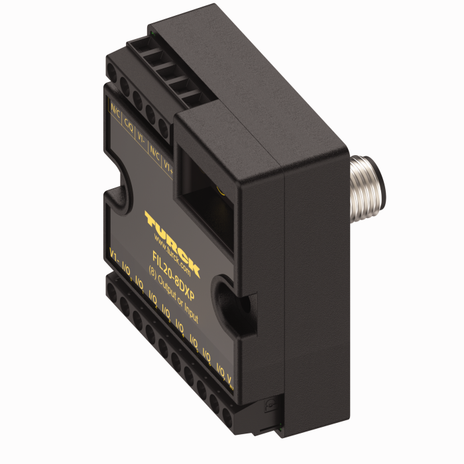

Turck FIL20-8DXP-E
SKU: CS3802432MPN: FIL20-8DXP-EAlternate Part #: 100005647UPC/EAN: 4047101556094
100005647 - IO-LINK
$233.00
UnitAvailable on backorder
Product Details
I/O Hub for connection of digital signals to IO-Link Master
8 Universal Digital Channels, PNP
- Rugged, I/O hub in IP20
- Metal screw terminal connectors
- 8 universal digital channels, DI/DO
- 24 VDC, PNP
- Output current: 1.0 A
- I\&M Data Sets Support Installation and Maintenance
- IO-Link Diagnostics for Short-Circuit and Supply Voltage
- Rear M12 connector for direct feeding through the cabinet wall
Attributes
| Ambient Temperature | -40…+70 °C |
| Connection Technology Signal | Screw terminal, M12 |
| Customs Tariff Number | 85369095000.0000 |
| Device Type | I/O hub, I/O Module, Compact station |
| Ecl Ss Code V5 1 4 | 27250307 -/- Technology module (periphery) |
| Fieldbus Connection Technology | Screw terminals |
| Fieldbus Protocol | IO-Link |
| Protection Class | IP20 |
| Signal Type | Digital input, Digital output |
Specifications
| SKU | CS3802432 |
|---|---|
| MPN | FIL20-8DXP-E |
| Alternate Part # | 100005647 |
| UPC/EAN | 4047101556094 |
You may also like
Turck FIL20-8DXP-DIN
$240.33Unit
Turck FIL20-8DXP
$225.44Unit
Turck TBIL-S3-8DXP
$324.44Unit
Turck TBIL-S4-8DXP
$324.44Unit

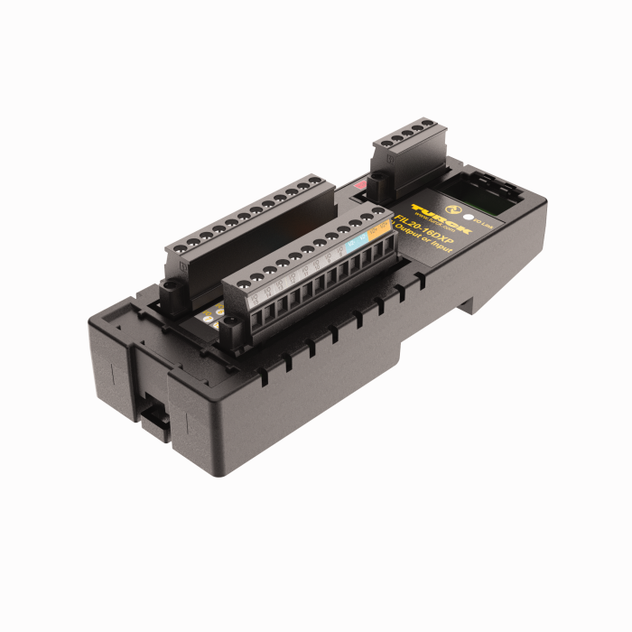

Turck FIL20-16DXP
