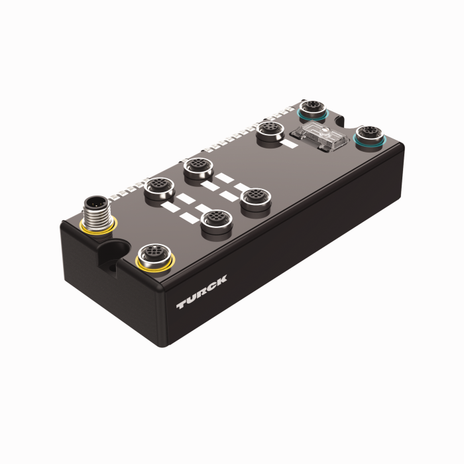

Turck BLCEN-5M12LT-1CNT-ENC-8DI-PD

SKU: CS3791820MPN: BLCEN-5M12LT-1CNT-ENC-8DI-PDAlternate Part #: 6811480UPC/EAN: 4047101631777

6811480 - MULTIPROTOCOL ETHERNET

Turck BLCEN-5M12LT-1CNT-ENC-8DI-PD
Turck BLCEN-5M12LT-1CNT-ENC-8DI-PD
Turck BLCEN-5M12LT-1CNT-ENC-8DI-PD
Turck BLCEN-5M12LT-1CNT-ENC-8DI-PD
$1,417.56
Unit
Available on backorder
remove
add

Product Details

BL compact™ multiprotocol fieldbus station for Industrial Ethernet

Digital Counter/Encoder Interface and 8 Digital PNP Inputs

  • On-machine Compact fieldbus I/O block
  • EtherNet/IP™, Modbus® TCP, or PROFINET slave
  • Integrated Ethernet Switch
  • 10 Mbps / 100 Mbps supported
  • Two 4-pole M12, D-coded, connectors for fieldbus connection
  • 2 rotary switches for node address
  • IP67, IP69K
  • M12 I/O connectors
  • LEDs indicating status and diagnostics
  • Electronics galvanically separated from the field level via optocouplers
  • 8 digital PNP inputs, 24 VDC
  • Channel diagnostics
  • Wire-break monitoring
  • Selection of filtering times (Input delay)
  • Invertible inputs
  • Detection of standard counting signals
  • 5 VDC differential
  • 5…24 VDC single ended
  • 1 digital PNP input, 24 VDC
  • 1 digital PNP output, 24 VDC, 0.5A

Attributes

Ambient Temperature -40…+70 °C
Connection Technology Signal M12
Customs Tariff Number 85176200000.0000
Device Type I/O Module, Compact station
Ecl Ss Code V5 1 4 27250313 -/- Communication interface, passive
Fieldbus Connection Technology 2 × M12
Fieldbus Protocol Modbus TCP, EtherNet/IP, PROFINET
Fieldbus Transmission Rate 10/100 Mbps
Protection Class IP67/IP69K
Signal Type Encoder, Counter, Digital input

Specifications

SKUCS3791820
MPNBLCEN-5M12LT-1CNT-ENC-8DI-PD
Alternate Part #6811480
UPC/EAN4047101631777
