Turck BLCEN-1M12MT-1RS232
SKU: CS3791795MPN: BLCEN-1M12MT-1RS232Alternate Part #: 6811461UPC/EAN: 4047101376647
6811461 - MULTIPROTOCOL ETHERNET
$1,073.56
UnitAvailable on backorder
Product Details

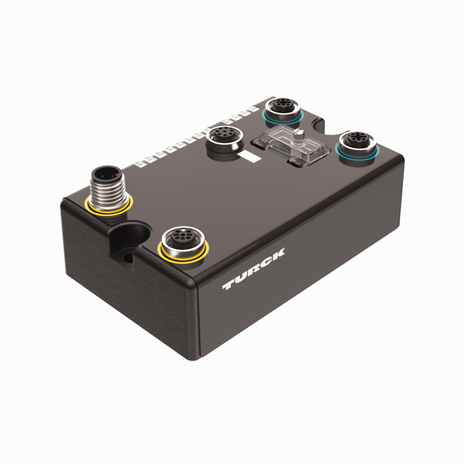

BL compact™ multiprotocol fieldbus station for Industrial Ethernet
RS232 Interface
- On-machine Compact fieldbus I/O block
- EtherNet/IP™, Modbus® TCP, or PROFINET slave
- Integrated Ethernet Switch
- 10 Mbps / 100 Mbps supported
- Two 4-pole M12, D-coded, connectors for fieldbus connection
- 2 rotary switches for node address
- IP67, IP69K
- M12 I/O connectors
- LEDs indicating status and diagnostics
- Electronics galvanically separated from the field level via optocouplers
- Transmission of serial data via RS232 interface
- For connection of devices such as: printers, scanners, or bar code readers
Attributes
| Ambient Temperature | -40…+70 °C |
| Connection Technology Signal | M12 |
| Customs Tariff Number | 85176200000.0000 |
| Device Type | I/O Module, Compact station |
| Ecl Ss Code V5 1 4 | 27250313 -/- Communication interface, passive |
| Fieldbus Connection Technology | 2 × M12 |
| Fieldbus Protocol | Modbus TCP, EtherNet/IP, PROFINET |
| Fieldbus Transmission Rate | 10/100 Mbps |
| Protection Class | IP67/IP69K |
| Signal Type | RS232 |
Specifications
| SKU | CS3791795 |
|---|---|
| MPN | BLCEN-1M12MT-1RS232 |
| Alternate Part # | 6811461 |
| UPC/EAN | 4047101376647 |
