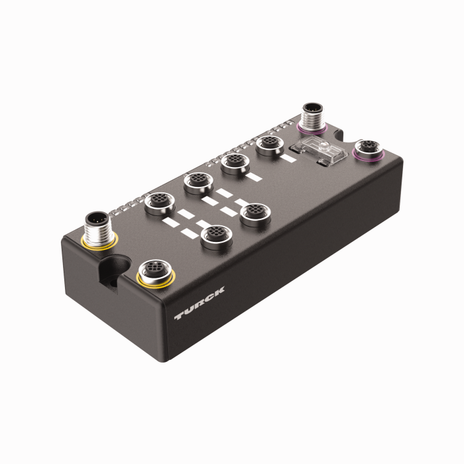

Turck BLCDP-6M12LT-2AI-PT-8XSG-PD

SKU: CS3791771MPN: BLCDP-6M12LT-2AI-PT-8XSG-PDAlternate Part #: 6811169UPC/EAN: 4047101198485

6811169 - PROFIBUS-DP

Turck BLCDP-6M12LT-2AI-PT-8XSG-PD, BLCDP-6M12LT-2AO-I-8XSG-PD, BLCDP-6M12LT-2RFID-S-8DI-PD, BLCDP-6M12LT-2RFID-S-8XSG-PD, BLCEN-6M12LT-2AI-PT-8XSG-P, BLCEN-6M12LT-2AO-I-8XSG-P, BLCEN-6M12LT-2RFID-S-8DO-0.5A-N, BLCEN-6M12LT-2RFID-S-8XSG-P
Turck BLCDP-6M12LT-2AI-PT-8XSG-PD, BLCDP-6M12LT-2AO-I-8XSG-PD, BLCDP-6M12LT-2RFID-S-8DI-PD, BLCDP-6M12LT-2RFID-S-8XSG-PD
Turck BLCDP-6M12LT-2AI-PT-8XSG-PD, BLCDP-6M12LT-2AO-I-8XSG-PD, BLCDP-6M12LT-2RFID-S-8DI-PD, BLCDP-6M12LT-2RFID-S-8XSG-PD, BLCEN-6M12LT-2AI-PT-8XSG-P, BLCEN-6M12LT-2AO-I-8XSG-P, BLCEN-6M12LT-2RFID-S-8DO-0.5A-N, BLCEN-6M12LT-2RFID-S-8XSG-P
Turck BLCDP-6M12LT-2AI-PT-8XSG-PD, BLCDP-6M12LT-2AO-I-8XSG-PD, BLCDP-6M12LT-2RFID-S-8DI-PD, BLCDP-6M12LT-2RFID-S-8XSG-PD
Contact us for pricing and availability

Product Details

BL compact™ fieldbus station for PROFIBUS-DP

2 Analog Inputs for Pt and Ni Sensors and 8 Configurable Digital PNP Channels

  • On-machine Compact fieldbus I/O block
  • PROFIBUS-DP slave
  • 9.6 kbps … 12 Mbps
  • Two 5-pole M12, reverse-keyed, connectors for fieldbus connection
  • 2 rotary switches for node address
  • IP67, IP69K
  • M12 I/O connectors
  • LEDs indicating status and diagnostics
  • Electronics galvanically separated from the field level via optocouplers
  • 8 Configurable digital PNP channels, 24 VDC
  • Max. 0.5A per channel
  • Channel diagnostics
  • Selection of filtering times (Input delay)
  • Invertible inputs
  • 2 analog inputs for RTDs
  • Pt100, Pt200, Pt500, Pt1000, Ni100, Ni1000, 0…100Ω, 0…200Ω, 0…400Ω, or 0…1000Ω (selectable per channel)

Attributes

Ambient Temperature -40…+70 °C
Connection Technology Signal M12
Customs Tariff Number 85176200000.0000
Device Type I/O Module, Compact station
Ecl Ss Code V5 1 4 27250313 -/- Communication interface, passive
Fieldbus Connection Technology 2 × M12
Fieldbus Protocol PROFIBUS-DP
Fieldbus Transmission Rate 9.6 kbps …12 Mbps
Protection Class IP67/IP69K
Signal Type Analog input, Digital output, Digital input/output, Digital input, Temperature

Specifications

SKUCS3791771
MPNBLCDP-6M12LT-2AI-PT-8XSG-PD
Alternate Part #6811169
UPC/EAN4047101198485
