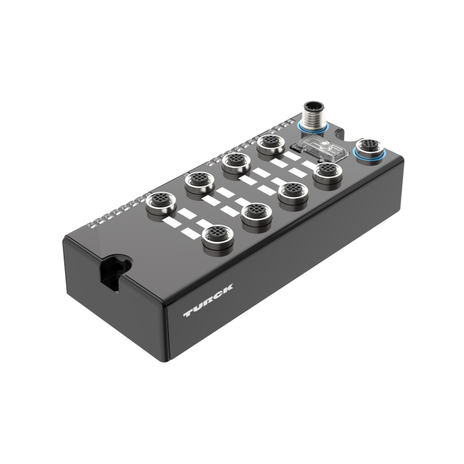

Turck BLCDN-8M12L-4AI-TC-4AI-TC

SKU: CS3791746MPN: BLCDN-8M12L-4AI-TC-4AI-TCAlternate Part #: 6811071

6811071 - DEVICENET

Turck BLCCO-8M12L-4AI-VI-4AI-VI, BLCCO-8M12L-4DI-P-4DI-P, BLCCO-8M12L-8DI-P-8DI-P, BLCDN-8M12L-4AI-TC-4AI-TC, BLCDN-8M12L-4AI-VI-4AI-VI, BLCDN-8M12L-4AI-VI-8XSG-PD, BLCDN-8M12L-8DI-N-8DI-N, BLCDN-8M12L-8DI-P-8DI-N, BLCDN-8M12L-8DI-P-8DI-P
Turck BLCCO-8M12L-4AI-VI-4AI-VI, BLCCO-8M12L-4DI-P-4DI-P, BLCCO-8M12L-8DI-P-8DI-P, BLCDN-8M12L-4AI-TC-4AI-TC, BLCDN-8M12L-4AI-VI-4AI-VI, BLCDN-8M12L-4AI-VI-8XSG-PD, BLCDN-8M12L-8DI-N-8DI-N, BLCDN-8M12L-8DI-P-8DI-N, BLCDN-8M12L-8DI-P-8DI-P
Turck BLCCO-8M12L-4AI-VI-4AI-VI, BLCCO-8M12L-4DI-P-4DI-P, BLCCO-8M12L-8DI-P-8DI-P, BLCDN-8M12L-4AI-TC-4AI-TC, BLCDN-8M12L-4AI-VI-4AI-VI, BLCDN-8M12L-4AI-VI-8XSG-PD, BLCDN-8M12L-8DI-N-8DI-N, BLCDN-8M12L-8DI-P-8DI-N, BLCDN-8M12L-8DI-P-8DI-P
Turck BLCCO-8M12L-4AI-VI-4AI-VI, BLCCO-8M12L-4DI-P-4DI-P, BLCCO-8M12L-8DI-P-8DI-P, BLCDN-8M12L-4AI-TC-4AI-TC, BLCDN-8M12L-4AI-VI-4AI-VI, BLCDN-8M12L-4AI-VI-8XSG-PD, BLCDN-8M12L-8DI-N-8DI-N, BLCDN-8M12L-8DI-P-8DI-N, BLCDN-8M12L-8DI-P-8DI-P
$1,565.00
Unit
Available on backorder
remove
add

Product Details

BL compact™ fieldbus station for DeviceNet™

8 Analog Inputs for Thermocouple Elements

  • On-machine Compact fieldbus I/O block
  • DeviceNet™ slave
  • 125 / 250 / 500 kbps
  • Two 5-pole M12 connectors for fieldbus connection
  • 2 rotary switches for node address
  • IP67, IP69K
  • M12 I/O connectors
  • LEDs indicating status and diagnostics
  • Electronics galvanically separated from the field level via optocouplers
  • 8 analog inputs for Thermo Couples
  • Types B, C, E, G, J, K, N, R, S or T (selectable per channel)
  • Cold-junction compensation via a Pt1000 in special connector

Attributes

Ambient Temperature -40…+70 °C
Connection Technology Signal M12
Device Type I/O Module, Compact station
Ecl Ss Code V5 1 4 27250313 -/- Communication interface, passive
Fieldbus Connection Technology 2 × M12
Fieldbus Protocol DeviceNet
Fieldbus Transmission Rate 125/250/500 kbps
Protection Class IP67/IP69K
Signal Type Analog input, Temperature

Specifications

SKUCS3791746
MPNBLCDN-8M12L-4AI-TC-4AI-TC
Alternate Part #6811071
