All ProductsTurck

Turck BL20-E-8AI-U/I-4PT/NI/ET

SKU: CS3791580MPN: BL20-E-8AI-U/I-4PT/NI/ETAlternate Part #: 6827340UPC/EAN: 4047101210699

6827340 - SYSTEMBUS

Turck BL20-E-16DI-24VDC-N, BL20-E-16DI-24VDC-P, BL20-E-16DO-24VDC-0.5A-N, BL20-E-16DO-24VDC-0.5A-P, BL20-E-16GNDL, BL20-E-16UL, BL20-E-2CNT-2PWM, BL20-E-4AO-U/I, BL20-E-4AO-U/I/ET, BL20-E-8AI-U/I-4PT/NI, BL20-E-8AI-U/I-4PT/NI/ET
$661.57
Unit
Available on backorder
remove
add

Product Details

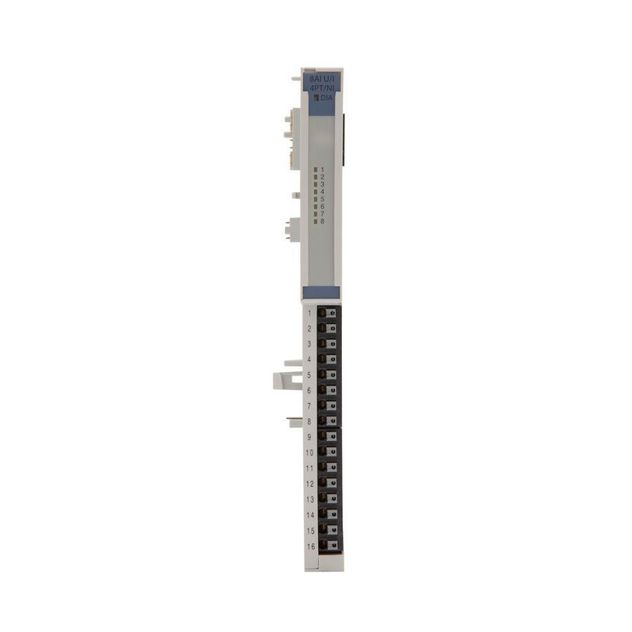

BL20 Economy Module

8 Analog Inputs U/I resp. 4 PT/NI Inputs

With Extended Temperature Range

  • Fieldbus-independent
  • Electronics and connection technology in one housing
  • Tension spring connection
  • Protection class IP20
  • LEDs indicate status and diagnostic
  • Electronics galvanically separated from the field level via optocouplers
  • 8 analog inputs U/I, 2-wire
  • Passive inputs – external power supply
  • 0…20mA, 4…20mA,‐10…+10VDC or 0…+10VDC, selectable per channel, resp.
  • 4PT/NI inputs (always 2 analog inputs are combined to a PT/Ni ⅔-wire input)
  • Extended temperature range: -25 °C…+60 °C
  • Circuit boards with conformal coating

Attributes

Ambient Temperature -25…+60 °C
Connection Technology Signal Cage clamp terminal
Customs Tariff Number 85389091890.0000
Device Type I/O Module
Ecl Ss Code V5 1 4 27250303 -/- Analog I/O module
Protection Class IP20
Signal Type Analog input, Temperature

Specifications

SKUCS3791580
MPNBL20-E-8AI-U/I-4PT/NI/ET
Alternate Part #6827340
UPC/EAN4047101210699
