Turck BIM-UNR-2AP6X-0.2-PSG4M
SKU: CS3790107MPN: BIM-UNR-2AP6X-0.2-PSG4MAlternate Part #: 46858434
46858434 - TRANS., RECT., DC, PIGTAIL M8
$268.08
UnitAvailable on backorder
Product Details
Magnetic Field Sensor
For Pneumatic Cylinders
- For C-groove cylinders without mounting accessories
- Optional accessories for mounting on other cylindrical housings.
- One-hand mounting possible
- Stable mounting
- Magneto-resistive sensor
- DC 3-wire, 11…30 VDC
- NO contact, PNP output
- Pigtail with male end M12 x 1
Attributes
| Ambient Temperature | -25…+70 °C |

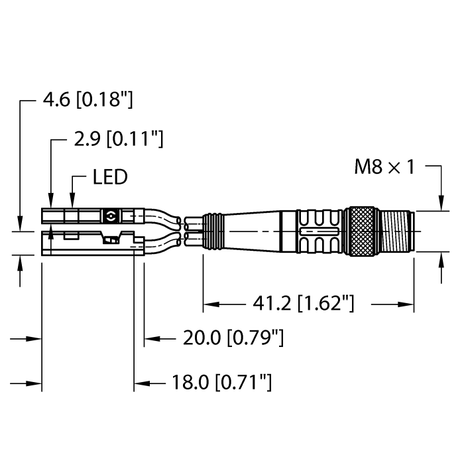

| Construction Size | 18 x 2.9 x 4.6 mm, UNR |
| Cylindrical Design | C-groove cylinder |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270104 -/- Magnetic inductive proximity switch |
| Electrical Connection | Cable with connector, M8 × 1 |
| Housing Material | Plastic, PP |
| Operating Voltage | 11…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP67 |
Specifications
| SKU | CS3790107 |
|---|---|
| MPN | BIM-UNR-2AP6X-0.2-PSG4M |
| Alternate Part # | 46858434 |
