Turck BIM-UNC-AN6X
SKU: CS3790093MPN: BIM-UNC-AN6XAlternate Part #: 100003138UPC/EAN: 4047101475753
100003138 - TRANS., RECT., DC, CABLE
$122.68
UnitAvailable on backorder
Product Details
Magnetic Field Sensor
For Pneumatic Cylinders
- For SMC C-groove cylinders without mounting accessories
- One-hand mounting possible
- Stable mounting
- Magneto-resistive sensor
- DC 3-wire, 11…30 VDC
- NO contact, NPN output
- Cable connection
Attributes
| Ambient Temperature | -25…+70 °C |

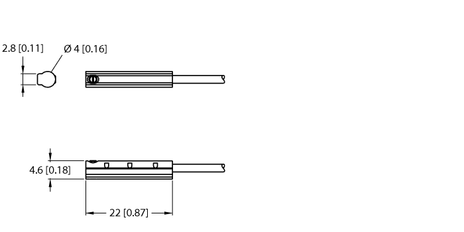

| Construction Size | 22 x 4 x 4.6 mm, UNC |
| Customs Tariff Number | 85365019900.0000 |
| Cylindrical Design | C-groove cylinder |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270104 -/- Magnetic inductive proximity switch |
| Electrical Connection | Cable |
| Housing Material | Plastic, PP-GF20 |
| Operating Voltage | 11…30 VDC |
| Output Function | NO contact, NPN |
| Protection Class | IP67 |
Specifications
| SKU | CS3790093 |
|---|---|
| MPN | BIM-UNC-AN6X |
| Alternate Part # | 100003138 |
| UPC/EAN | 4047101475753 |
