Turck BI8U-Q08-AP6X2-0.2-RS4T/S1589
SKU: CS3789929MPN: BI8U-Q08-AP6X2-0.2-RS4T/S1589Alternate Part #: 1662083UPC/EAN: 4047101326642
1662083 - UPROX, RECT., DC, PIGTAIL M12
$181.49
UnitAvailable on backorder
Product Details
Inductive Sensor
With WeldGuard™ Coating and Increased Switching Distance
- Rectangular, height 8 mm
- Active face on top
- Metal, Zamak, nickel-plated
- Factor 1 for all metals
- Increased switching distance
- Protection class IP68
- Resistant to magnetic fields
- Mountable on metal
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- Pigtail with male end M12 x 1
Attributes
| Ambient Temperature | -25…+70 °C |

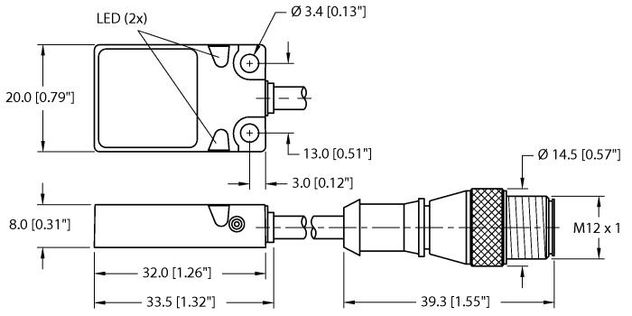

| Construction Size | 32 x 20 x 8 mm, Q08 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Cable with connector, M12 × 1 |
| Housing Material | Metal, Zamak, Nickel Plated |
| Mounting | Flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP68 |
| Rated Switching Distance | 8 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields |
| Switching Frequency | 0.250 kHz |
Specifications
| SKU | CS3789929 |
|---|---|
| MPN | BI8U-Q08-AP6X2-0.2-RS4T/S1589 |
| Alternate Part # | 1662083 |
| UPC/EAN | 4047101326642 |
