Turck BI3-EG08FE-AP6X-0.3-RS4T
SKU: CS3789097MPN: BI3-EG08FE-AP6X-0.3-RS4TAlternate Part #: 46147041
46147041 - FERRITE, BARREL, DC, PIGTAIL
$239.39
UnitAvailable on backorder
Product Details
Inductive Sensor
Stainless Steel Front

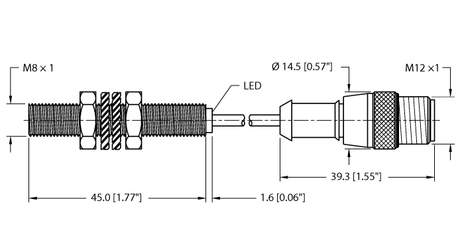

- Threaded barrel, M8 x 1
- Stainless steel, 1.4305
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- Pigtail with male end M12 x 1
Attributes
| Ambient Temperature | -25…+85 °C |
| Construction Size | M8 x 1 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Cable with connector, M12 × 1 |
| Housing Material | Stainless steel, 1.4305 (AISI 303) |
| Mounting | Flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP67/IP68 |
| Rated Switching Distance | 3 mm |
| Special Feature | All-metal sensor, Pressure resistant |
| Switching Frequency | 1.0 kHz |
Specifications
| SKU | CS3789097 |
|---|---|
| MPN | BI3-EG08FE-AP6X-0.3-RS4T |
| Alternate Part # | 46147041 |
