Turck BI2-Q5.5K-Y1X
SKU: CS3788951MPN: BI2-Q5.5K-Y1XAlternate Part #: 4055300
4055300 - FERRITE, RECT., NAMUR, CABLE
Contact us for pricing and availability
Product Details
Inductive Sensor
- Rectangular, height 5.5 mm
- Active face on top
- Plastic, PP GF-20
- DC 2-wire, nom. 8.2 VDC
- Output acc. to DIN EN 60947-5-6 (NAMUR)
- Cable connection
- ATEX category II 2 G, Ex Zone 1
- ATEX category II 1 D, Ex Zone 20
- SIL 2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0
- SIL 3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1
Attributes
| Ambient Temperature | -25…+70 °C |
| Approvals | ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc |

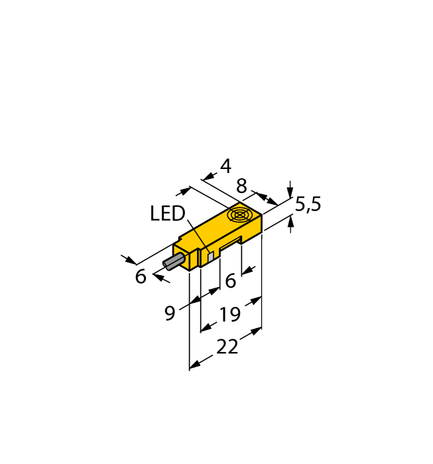

| Construction Size | 22 x 8 x 5.5 mm, Q5.5K |
| Customs Tariff Number | 85365019900.0000 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Cable |
| Housing Material | Plastic, PP-GF20 |
| Mounting | Flush |
| Output Function | NAMUR |
| Protection Class | IP67 |
| Rated Switching Distance | 2 mm |
| Switching Frequency | 2.0 kHz |
Specifications
| SKU | CS3788951 |
|---|---|
| MPN | BI2-Q5.5K-Y1X |
| Alternate Part # | 4055300 |
