Turck BI2-EG08K-AG41X-0.3-RS4.2T/S1589

SKU: CS3788390MPN: BI2-EG08K-AG41X-0.3-RS4.2T/S1589Alternate Part #: 45620891

45620891 - FERRITE, BARREL, DC, PIGTAIL

Turck BI2-EG08K-AG41X-0.2-RS4.2T, BI2-EG08K-AG41X-0.3-RS4.23T/S1589, BI2-EG08K-AG41X-0.3-RS4.2T/S1589
$188.49
Unit
Available on backorder
remove
add

Product Details

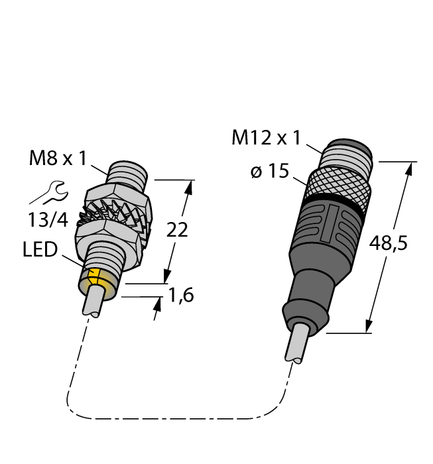

Inductive Sensor

With Weldguard® coating

  • Threaded barrel, M8 x 1
  • Stainless steel, 1.4427 SO
  • DC 2-wire, 10…55 VDC
  • Polarized version
  • NO contact
  • Pigtail with male end M12 × 1

Attributes

Ambient Temperature -25…+70 °C
Construction Size M8 x 1
Design Threaded barrel
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Cable with connector, M12 × 1
Housing Material Stainless steel, 1.4427 SO
Mounting Flush
Operating Voltage 10…55 VDC
Output Function NO contact, 2-wire
Protection Class IP67
Rated Switching Distance 2 mm
Special Feature weldguard®
Switching Frequency 0.30 kHz

Specifications

SKUCS3788390
MPNBI2-EG08K-AG41X-0.3-RS4.2T/S1589
Alternate Part #45620891
