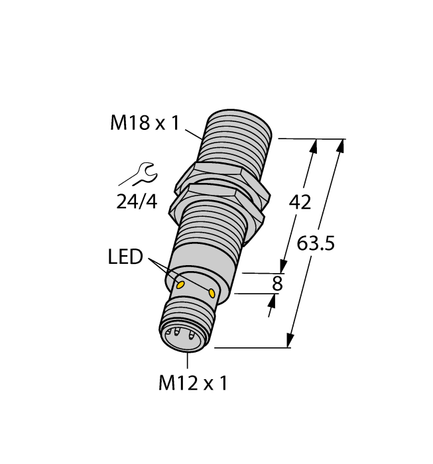

Turck BI10-EG18FM-AP6X-H1141
SKU: CS3787931MPN: BI10-EG18FM-AP6X-H1141Alternate Part #: 4614725UPC/EAN: 4047101315714
4614725 - FERRITE, BARREL, DC, CON. M12
$198.93
UnitAvailable on backorder
Product Details
Inductive Sensor
Stainless Steel Front
- Threaded barrel, M18 x 1
- Stainless steel, 1.4305
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- M12 x 1 male connector
Attributes
| Ambient Temperature | -25…+70 °C |
| Construction Size | M18 x 1 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Stainless steel, 1.4305 (AISI 303) |
| Mounting | Flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP68/IP69K |
| Rated Switching Distance | 10 mm |
| Special Feature | All-metal sensor, Pressure resistant |
| Switching Frequency | 0.20 kHz |
Specifications
| SKU | CS3787931 |
|---|---|
| MPN | BI10-EG18FM-AP6X-H1141 |
| Alternate Part # | 4614725 |
| UPC/EAN | 4047101315714 |
