All ProductsTurck

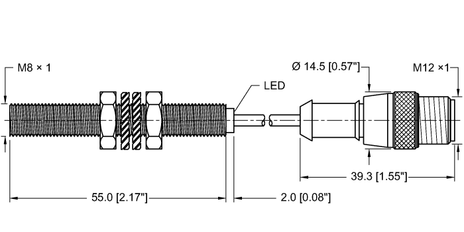

Turck BI1.5-G08-AN7X-0.2-RS4T

SKU: CS3787860MPN: BI1.5-G08-AN7X-0.2-RS4TAlternate Part #: 4701197

4701197 - FERRITE, BARREL, DC, PIGTAIL M

Turck BI1.5-G08-AN6X-0.2-RS4T, BI1.5-G08-AN7X-0.2-RS4T, BI2-G08-AN6X-0.2-RS4T, BI2-G08-AP6X-0.2-RS4T
$154.53
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

  • Threaded barrel, M8 x 1
  • Stainless steel, 1.4404
  • DC 3-wire, 10…30 VDC
  • NO contact, NPN output
  • TTL compatible
  • Pigtail with male end M12 x 1

Attributes

Ambient Temperature -25…+70 °C
Construction Size M8 x 1
Design Threaded barrel
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Cable with connector, M12 × 1
Housing Material Metal, 1.4404 (AISI 316L)
Mounting Flush
Operating Voltage 10…30 VDC
Output Function NO contact, NPN
Protection Class IP67
Rated Switching Distance 1.5 mm
Switching Frequency 3.0 kHz

Specifications

SKUCS3787860
MPNBI1.5-G08-AN7X-0.2-RS4T
Alternate Part #4701197
