All ProductsTurck

Turck BI1.5-CRS730C-ADZ30X2-B1131

SKU: CS3787749MPN: BI1.5-CRS730C-ADZ30X2-B1131Alternate Part #: 4279095UPC/EAN: 4047101284225

4279095 - FERRITE, BARREL, AC, CON. ⅞I

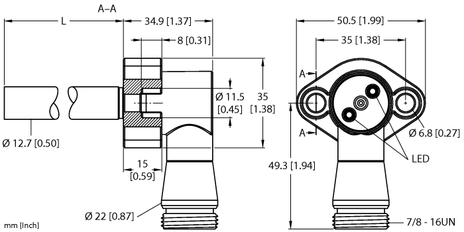

Turck BI1.5-CRS232C-ADZ30X2-B1131, BI1.5-CRS260C-ADZ30X2-B1131, BI1.5-CRS730C-ADZ30X2-B1131, BI1.5-CRS959C-ADZ30X2-B1131
$579.75
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

For High Pressures

  • Smooth barrel, stainless steel, 1.4305
  • Ø 12.7 mm
  • Housing, GD-Zn, chromated
  • Special high pressure seal and active ceramic surface
  • Permissible dynamic pressure 206 bar; static overpressure 310 bar
  • AC 2-wire, 20…250 VAC
  • DC 2-wire, 10…300 VDC
  • NO contact
  • ⅞” male connector

Attributes

Ambient Temperature -25…+70 °C
Construction Size Ø 12.7 mm
Customs Tariff Number 85365080900.0000
Design Smooth barrel
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Connector, ⅞″
Housing Material Metal, 1.4305 (AISI 303)
Mounting Flush
Operating Voltage 20…250 VAC / 10…300 VDC
Output Function NO contact, 2-wire
Protection Class IP67
Rated Switching Distance 1.5 mm
Special Feature Pressure resistant
Switching Frequency 0.020 kHz

Specifications

SKUCS3787749
MPNBI1.5-CRS730C-ADZ30X2-B1131
Alternate Part #4279095
UPC/EAN4047101284225
