Turck BI1-EG05-Y1-0.2-PSG3
SKU: CS3787633MPN: BI1-EG05-Y1-0.2-PSG3Alternate Part #: 1003291UPC/EAN: 4047101692563
1003291 - FERRITE, BARREL, DC, PIGTAIL M
$133.33
UnitAvailable on backorder
Product Details
Inductive Sensor

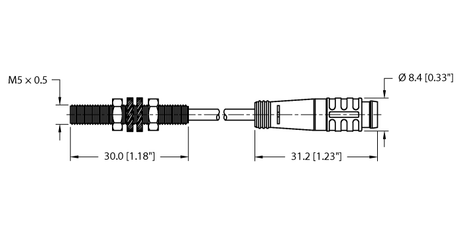

- Threaded barrel, M5 x 0.5
- Stainless steel, 1.4427 SO
- DC 2-wire, nom. 8.2 VDC
- Output acc. to DIN EN 60947-5-6 (NAMUR)
- Pigtail with M8 × 1 male connector
- ATEX category II 1 G, Ex zone 0
- ATEX category II 1 D, Ex zone 20
- SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 with HFT0
- SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1
Attributes
| Ambient Temperature | -25…+70 °C |
| Approvals | ATEX II 1 G, ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc |
| Construction Size | M5 x 0.5 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Cable with connector, M8 × 1 |
| Housing Material | Stainless steel, 1.4427 SO |
| Mounting | Flush |
| Output Function | NAMUR |
| Protection Class | IP67 |
| Rated Switching Distance | 1 mm |
| Switching Frequency | 5.0 kHz |
Specifications
| SKU | CS3787633 |
|---|---|
| MPN | BI1-EG05-Y1-0.2-PSG3 |
| Alternate Part # | 1003291 |
| UPC/EAN | 4047101692563 |
