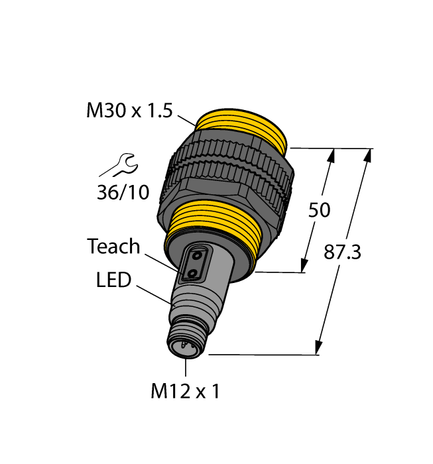

Turck BCT10-S30-UN6X2T-H1151
SKU: CS3787540MPN: BCT10-S30-UN6X2T-H1151Alternate Part #: 2101600UPC/EAN: 4047101332759
2101600 - CT, BARREL-FL, GEN., GEN.
$258.44
UnitAvailable on backorder
Product Details
Capacitive Sensor
- M30 × 1.5 threaded barrel
- Plastic, PA12‐GF30
- Teach-in and configuration via buttons on the device, pin 5 and IO-Link
Attributes
| Ambient Temperature | -25…+70 °C |
| Approvals | UL |
| Communication Protocol | IO-Link |
| Construction Size | M30 x 1.5 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270102 -/- Capacitive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Plastic, PA12-GF30, PEI |
| Operating Voltage | 18…30 VDC |
| Output Function | NO/NC, NPN |
| Protection Class | IP67 |
| Rated Switching Distance | 15 mm |
Specifications
| SKU | CS3787540 |
|---|---|
| MPN | BCT10-S30-UN6X2T-H1151 |
| Alternate Part # | 2101600 |
| UPC/EAN | 4047101332759 |
You may also like
Turck BCT10-S30-UP6X2T-H1151
$258.44Unit

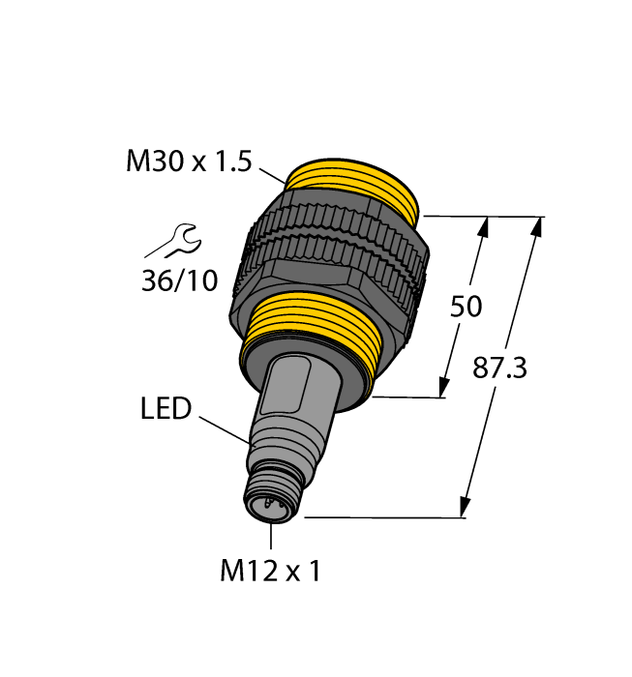

Turck BCT10-S30-UP6X2-H1151
$244.65Unit

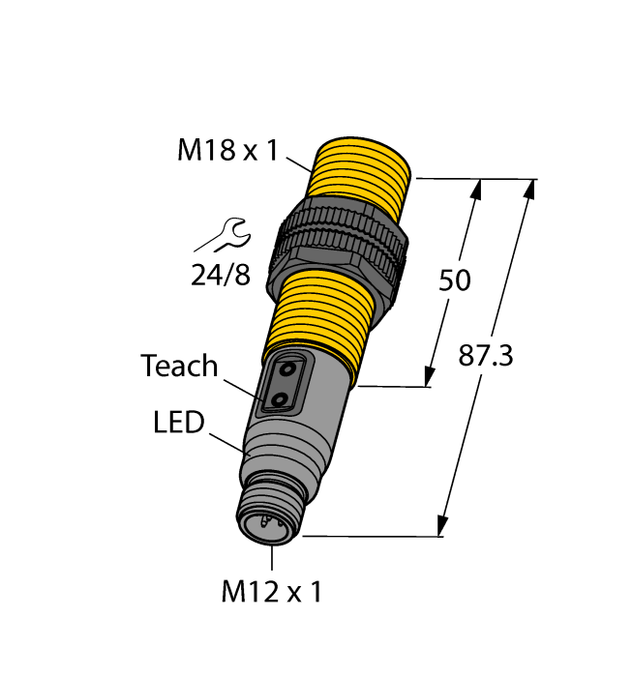

Turck BCT5-S18-UN6X2T-H1151
$244.86UnitTurck BCT5-S18-UP6X2T-H1151
$250.54Unit

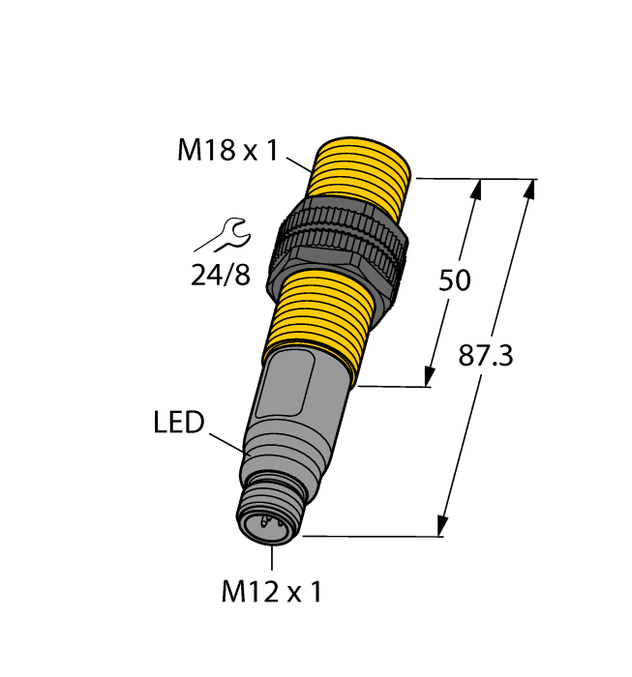

Turck BCT5-S18-UN6X2-H1151
