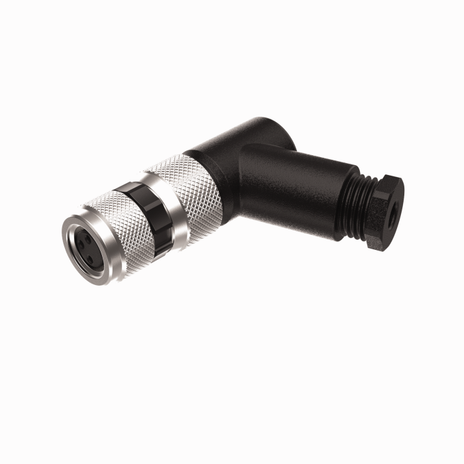

Turck B 5233-0
SKU: CS3787188MPN: B 5233-0Alternate Part #: U2-31430
U2-31430 - FIELD WIREABLE,M8PICOFAST
$26.36
UnitAvailable on backorder
Product Details
Actuator and Sensor Field Wireable
M8 × 1, Female, Right Angle
- 3 Pins
- Insulation displacement Wire Termination
- Plastic Housing
- Screw terminal Wire Termination
Attributes
| Acceptable Cable Diameter | 3.5…5 mm |
| Approvals | RoHS |
| Connection Mode | Screw/clamp connection |
| Core Cross Section Clamping Ability | 22 mm² |
| Coupling Nut Screw Material | Brass, CuZn, Nickel-plated |
| Current | 4 A |
| Housing Material | Plastic, PA |
| Number Of Contacts | 3 |
Specifications
| SKU | CS3787188 |
|---|---|
| MPN | B 5233-0 |
| Alternate Part # | U2-31430 |
