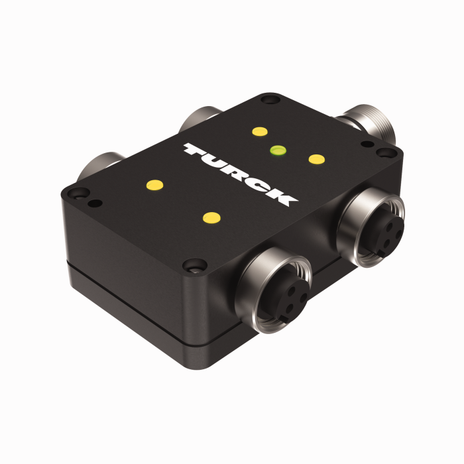

Turck 4 RKF 30-X5-CS12
SKU: CS3786511MPN: 4 RKF 30-X5-CS12Alternate Part #: U2361-01
U2361-01 - J-BOX,⅞IN.MINIFAST
$325.06
UnitAvailable on backorder
Product Details
Passive Actuator/Sensor Junction Box, 4 Ports
⅞” minifast I/O Ports
- ⅞” minifast Junction Box
- 4 ports
- Aluminum housing
- LED
- I/O port: 3-pin
Attributes
| Ampacity | 4 A per port, total current 7 A |
| Approvals | CSA |
| Current Per Port | 4 A |
| Display Switching State | LED, yellow |
| Ecl Ss Code V5 1 4 | 27250313 -/- Communication interface, passive |
| Homerun Connector | Male, M23 × 1, Side exit |
| Housing Material | Aluminum |
| I O Port | Female, ⅞″ |
| Number Of Contacts | 12 |
| Number Of Ports | 4.0000 |
| Signals Per Port | 1.0000 |
Specifications
| SKU | CS3786511 |
|---|---|
| MPN | 4 RKF 30-X5-CS12 |
| Alternate Part # | U2361-01 |
