Siemens POL648.10/RTU-P74
SKU: CS3748783MPN: POL648.10/RTU-P74UPC/EAN: 4047625012595
Kit for Climatix controller with a pre-defined application designed for use in rooftop applications and QMX3.P74
$1,363.15
UnitAvailable on backorder
Product Details

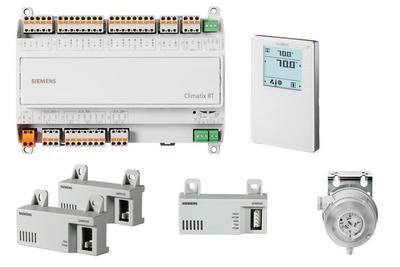

Kit containing a Climatix RTU controller with a pre-defined Rooftop application, Differential Pressure switch, Duct temperature sensors, Relative Humidity \& Temperature sensor and room unit with display, Temp, RH and IAQ. NOTE: A POL903.00/100 (S55803-Y130-A100) WLAN Adapter is needed for WLAN connectivity during commissioning workflow with mobile devices.
Attributes
| Analog Inputs Number | 3.0000 |
| Analog Outputs Number | 8.0000 |
| Communication | Ethernet port for Modbus/IP, BACnet/IP, OPC, servicing and Climatix IC.;RS-485 (galvanically separated) interface for Modbus RTU and BACnet MS/TP. |
| Digital Inputs Number | 4.0000 |
| Digital Outputs Number | 6.0000 |
| Frequency | 45 to 65 Hz |
| Mounting | DIN rail |
| Operating Voltage | 24 Vac ± 20 %;24 Vdc ± 10 % |
| Power Consumption | 39 VA / 24 W |
Specifications
| SKU | CS3748783 |
|---|---|
| MPN | POL648.10/RTU-P74 |
| UPC/EAN | 4047625012595 |
