Siemens 656-0018
SKU: CS3746858MPN: 656-0018UPC/EAN: 804766021503
2-way NO angle union valve, ¾” 4.6Cv, pneumatic actuator, 3-8psi spring range
$252.86
Unit22 in stock
Product Details

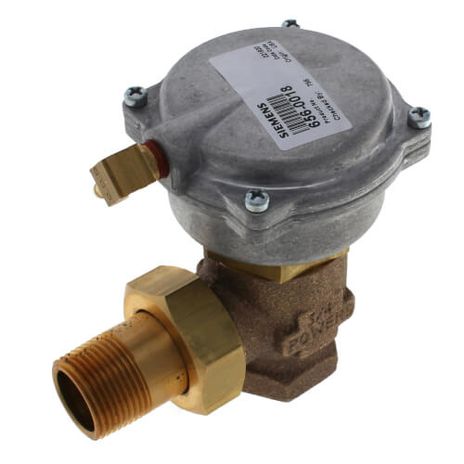

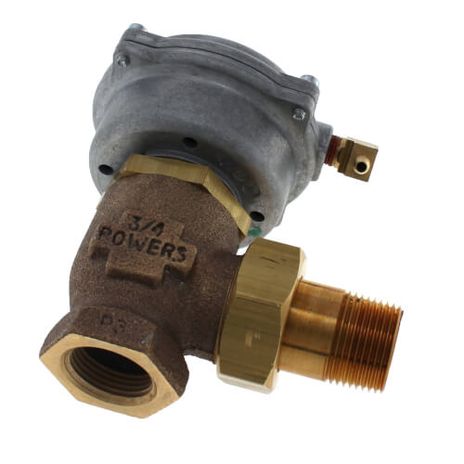

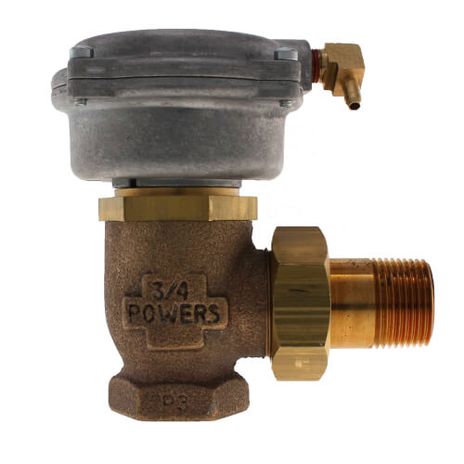

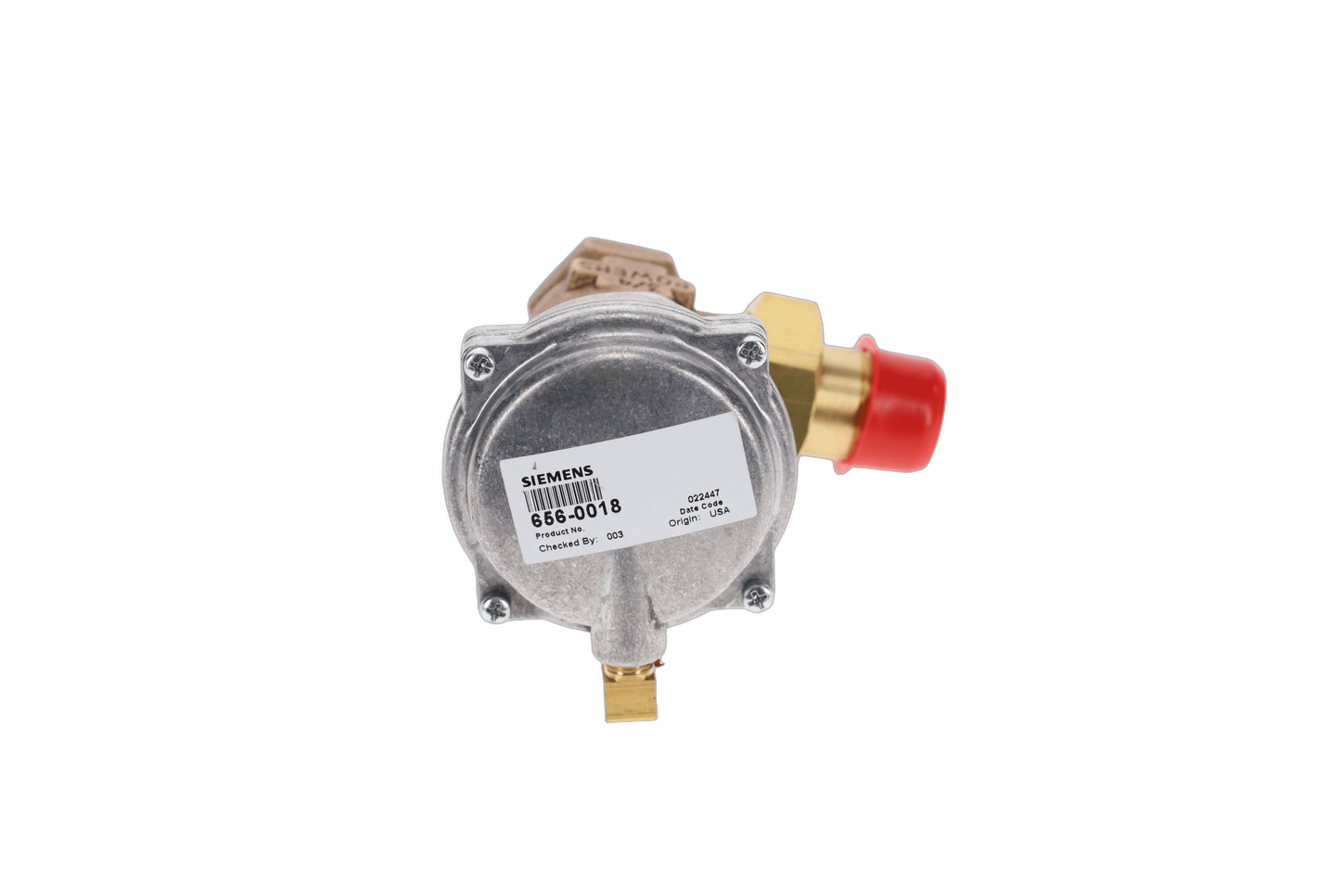

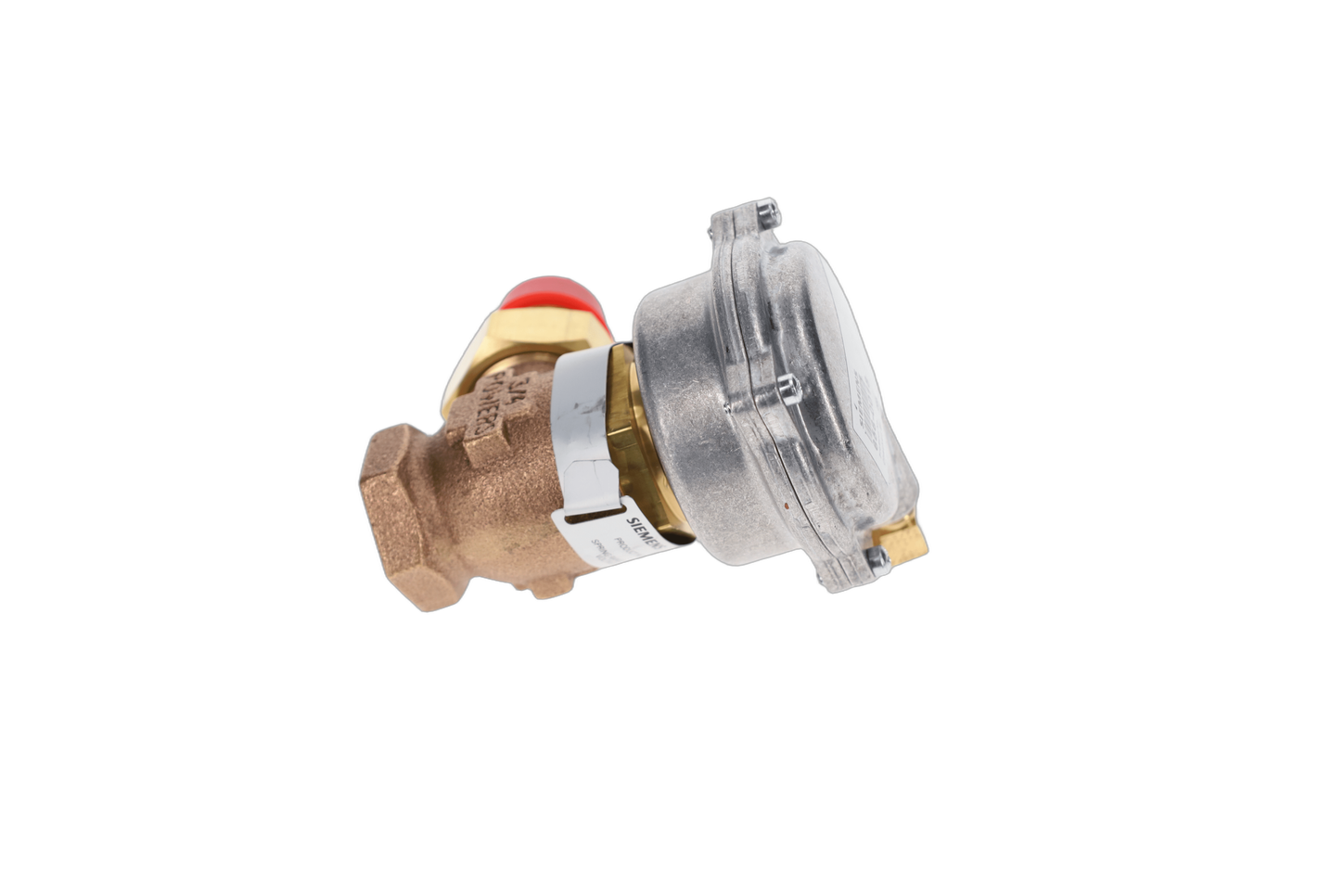

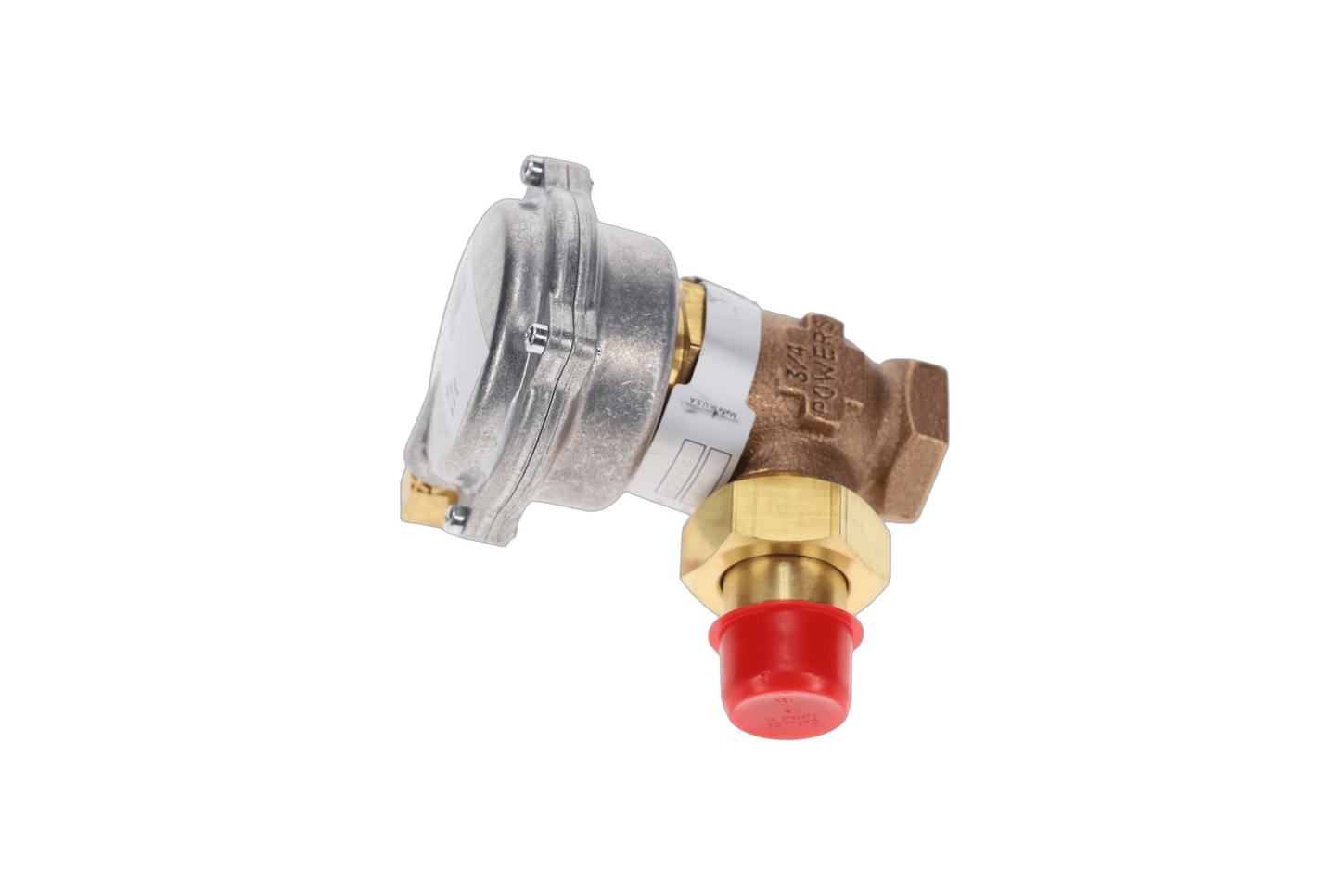

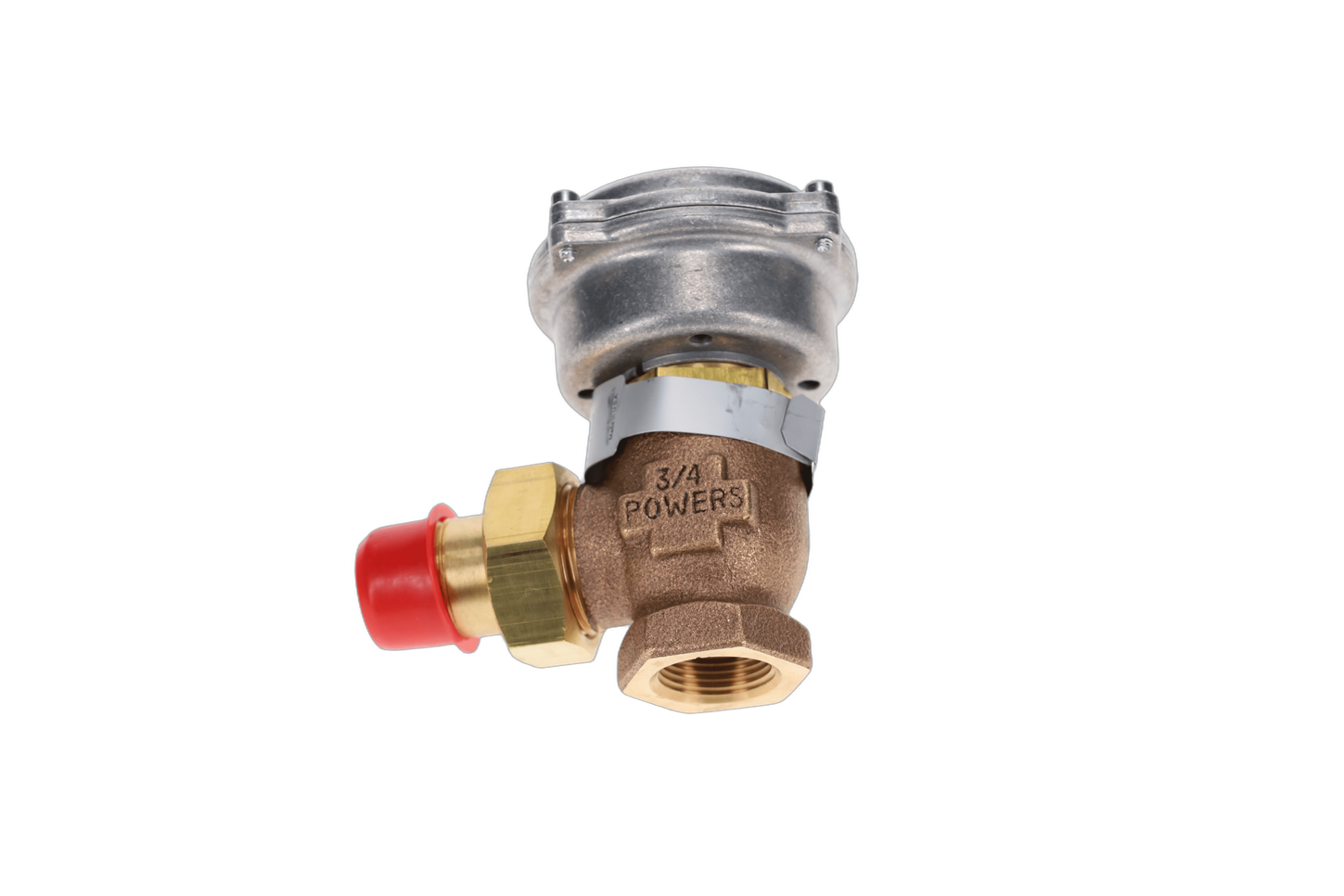

The normally open 656 angle union valves are pneumatically operated valves designed to control the flow of both water and steam. This normally open valve is ¾” line size with 4.6Cv. The actuator is a 2” pneumatic with 3-8psi spring range.
Attributes
| Valve Type | Globe |
| Valve Pattern | 2-Way |
| End Connection | NPT |
| Valve Flow Coefficient (Cv) | 4.6 |
| Max Temp | 250 °F |
| Trim | Brass |
| Butterfly Disc | Under Cut Disc |
| Butterfly Heater | NO |
| Butterfly Limit Switch | NO |
Specifications
| SKU | CS3746858 |
|---|---|
| MPN | 656-0018 |
| UPC/EAN | 804766021503 |
