Johnson Controls VA-9072-01

VA-9072-01;ELEC;ACT;MODU;

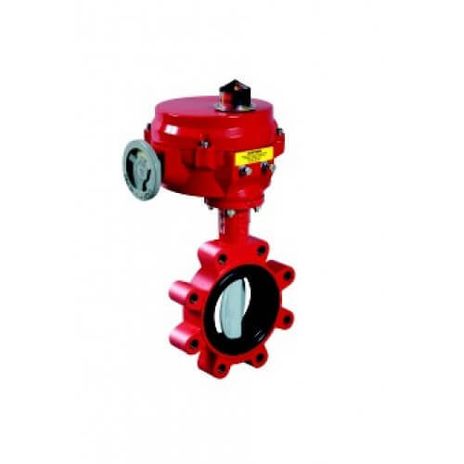

The VA-9070 Series Electric Rotary Actuators for Two-Position and Modulating Service are designed for direct mounting on VF Series Butterfly Valves. The VA-9070 is available in eight different sizes, for two-position and modulating service on VF Series Standard-Pressure, Standard-Temperature Butterfly Valves and VF Series High-Pressure, High-Temperature Butterfly Valves.

Features

• Low profile and lightweight design
• Built-in motor overload protection
• Pre-wired actuator switches to terminal block; field-configurable power and input signals
• Patented travel limit switch cam design
• External manual handwheel override
• Rugged, die-cast aluminum National Electrical Manufacturers’ Association (NEMA) 4, 4X, IP65 Type enclosure and captive housing screws
• Valve status display
• Heater/thermostat

Note: Image may not be actual representation of product
