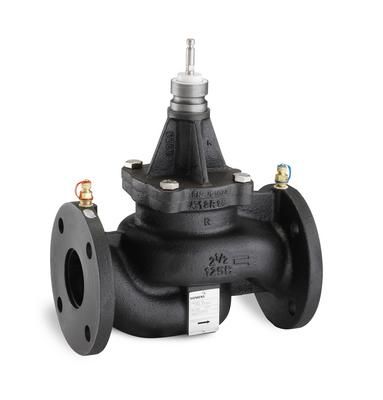

Siemens 599-07317
SKU: CS3746439MPN: 599-07317UPC/EAN: 4034106338039
PICV, 4 inch, ANSI 125, 395 GPM max. flow
Discontinued - Contact Us For Pricing & Availability
Product Details
Pressure Independent Control Valve, 4 inch, ANSI 125, 395 GPM maximum flow (field adjustable as low as 65 GPM)
Attributes
| End Connection | Flanged |
| Flow Characteristic | Linear |
| Leakage Rate | Class IV (0.01% of Cv) |
| Material Inside Set | Stem, Spring, Seat: Stainless Steel;Plug: Brass (DZR);Regulator: Stainless Steel;Seals: EPDM (peroxide cured) |
| Material Valve Body | Cast Iron |
| Max Gpm | 395 gpm |
| Mechanical Design | 395 GPM max. flow |
| Medium | Water;Water with anti-freeze |
| Medium Temperature | 34…250 ºF |
| Medium Temperature F Max | 250 ºF |
| Medium Temperature F Min | 34 ºF |
| Min Gpm | 65 gpm |
| Normally Open Normally Closed | Normally Open |
| Permissible Operating Pressure | 90 psi |
| Port Configuration | 2-Way Normally open |
| Preset Gpm | 395 gpm |
| Stroke | 1-½ in., 40 mm |
| Trim Material | Brass |
| Valve Body Style | Stroke-Globe |
| Valve Size | 4 in |
| Valve Type | Two-way |
Specifications
| SKU | CS3746439 |
|---|---|
| MPN | 599-07317 |
| UPC/EAN | 4034106338039 |
