Siemens 599-06619
SKU: CS3746425MPN: 599-06619UPC/EAN: 4034106337858

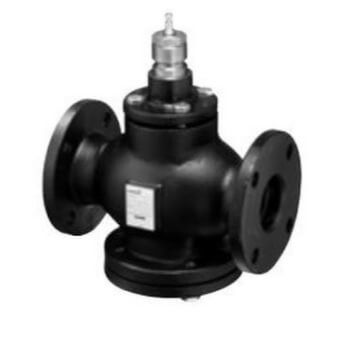

Flowrite two-way 6-inch high close-off valve. ANSI 125, NC, SS trim.
$3,302.08
UnitAvailable on backorder
Product Details
Flowrite 599 Series High Close-off 2-way 6-inch valve, flanged iron body ANSI 125, NC, Equal Percentage flow; Stainless steel trim.
Attributes
| Connecting Thread | Universal bonnet for direct-coupled actuators |
| End Connection | Flanged |
| Flow Characteristic | Equal-percentage |
| Flow Coefficient Cv | 400.0000 |
| High Temperature | NO |
| Leakage Rate | ANSI Leakage Class IV |
| Material Inside Set | Body Trim: Stainless Steel;Stem: Stainless steel ASTM A582 Type 303;Plug: Stainless Steel;Seat: Metal-to-metal;Normal Duty Packing: EPDM O-ring |
| Material Valve Body | Cast iron ASTM A126 Class B |
| Medium | Water;Water with anti-freeze |
| Medium Temperature | 20…250 ºF |
| Medium Temperature F Max | 250 ºF |
| Medium Temperature F Min | 20 ºF |
| Mounting Position | vertical, horizontal, upright |
| Normally Open Normally Closed | Normally Closed |
| Permissible Operating Pressure | 1379 kPa; 50 psi |
| Port Configuration | 2-Way Normally closed |
| Rangeability | 100:1 |
| Stroke | 40 mm;1.5 ” mm |
| Trim Material | Stainless Steel |
| Valve Body Style | Stroke-Globe |
| Valve Size | 6 in |
| Valve Type | Two-way |
Specifications
| SKU | CS3746425 |
|---|---|
| MPN | 599-06619 |
| UPC/EAN | 4034106337858 |
