Siemens 599-04320-0.5

SKU: CS3746365MPN: 599-04320-0.5

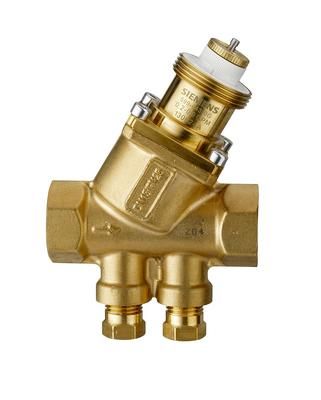

599-04320-0.5, ½ PICV, 0.5 GPM NO

Siemens Building Technologies 599-04314-11, 599-04314-12, 599-04314-13, 599-04314-14, 599-04314-15, 599-04314-16, 599-04314-17, 599-04314-18, 599-04314-9, 599-04320-0.5, 599-04321-1.5, 599-04321-2, 599-04321-2.5, 599-04321-3, 599-04321-3.5
$148.75
Unit
Available on backorder
remove
add

Product Details

½-PICV, 0.5 GPM NO

Attributes

Close Off Pressure 200 psi
End Connection NPT
Flow Characteristic Linear
Leakage Rate ANSI Class IV (0.01%) @ 200 psi
Material Inside Set Plug: Brass;Stem: Stainless Steel;Seals: EPDM O-ring
Material Valve Body Brass
Max Gpm 1.6 gpm
Mechanical Design 0.5 GPM max. flow preset
Medium Water;Water with anti-freeze
Medium Temperature 34…248 ºF
Medium Temperature F Max 248 ºF
Medium Temperature F Min 34 ºF
Min Gpm 0.3 gpm
Mounting Position any
Normally Open Normally Closed Normally Open
Permissible Operating Pressure 58 psi
Port Configuration 2-Way Normally open
Preset Gpm 0.5 gpm
Rangeability ≥ 100:1
Stroke 5 mm
Trim Material Brass
Valve Body Style Stroke-Globe
Valve Size 0.5 in
Valve Type Two-way

Specifications

SKUCS3746365
MPN599-04320-0.5
