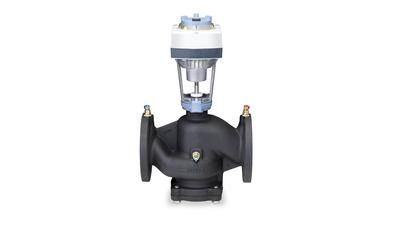

Siemens 371-07331
SKU: CS3745944MPN: 371-07331
PICV, 3 inch, ANSI 125, 195 GPM max. flow, w/ 3 P/T ports, with SAX Actuator, 0-10V, NSR
$4,426.67
UnitAvailable on backorder
Product Details
Pressure Independent Control Valve, 3 inch, ANSI 125, 195 GPM maximum flow (field adjustable), w/ 3 P/T ports, with 24 Vac Electronic SAX Non-spring Return Actuator, 0-10V or 4-20mA
Attributes
| Actuation Style | Linear |
| Actuator Type | Electronic |
| Close Off Pressure | 100 psi |
| Control Signal | 0…10 Vdc |
| End Connection | Flanged |
| Fail Safe | No |
| Flow Characteristic | Linear |
| Material Inside Set | Stem, Spring, Seat: Stainless Steel;Plug: Brass (DZR);Regulator: Stainless Steel;Seals: EPDM (peroxide cured) |
| Material Valve Body | Cast Iron |
| Max Differential Pressure Liquid | 90 psi |
| Max Gpm | 195 gpm |
| Max Inlet Pressure Absolute Liquid | 200 psi |
| Medium | Water;Water with anti-freeze |
| Medium Temperature | 34…250 ºF |
| Medium Temperature F Max | 250 ºF |
| Medium Temperature F Min | 34 ºF |
| Min Gpm | 31 gpm |
| Operating Voltage | 24 VAC |
| Port Configuration | 2-Way Normally open |
| Positioning Time | 30 s |
| Power Consumption | 8 VA |
| Preset Gpm | 195 gpm |
| Stroke | ¾ in., 20 mm |
| Trim Material | Brass |
| Valve Size | 3 in |
Specifications
| SKU | CS3745944 |
|---|---|
| MPN | 371-07331 |
