Siemens 366-02046
SKU: CS3745852MPN: 366-02046UPC/EAN: 4034106383824
MT Series 2W Valve assy ANSI 250 NO Mod Eq Pct 1” FxF 10Cv 24V float SR
$462.54
UnitAvailable on backorder
Product Details

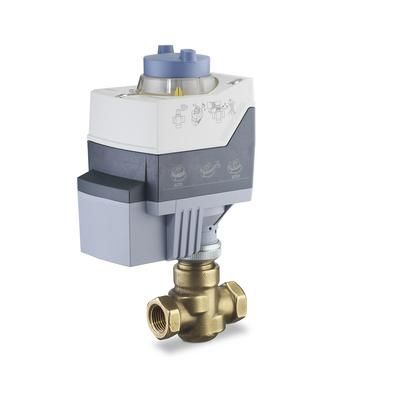

This Powermite 599 MT Series Valve Assembly features a 24V, spring return, electro-mechanical actuator with floating control. The 1 in. line size, 2-way normally open assembly has a 10 Cv flow rate, brass trim, FxF connection, and a modified equal percentage flow characteristic. The assembly is ANSI Class 250 with a Class IV (0.01% of Cv) leakage rate. A typical application of the Powermite 599 Assembly is the control of hot or chilled water.
Attributes
| Actuator Type | Electronic |
| Close Off Pressure | 70 psi |
| Connecting Thread | Direct-coupled universal bonnet |
| Control Signal | Floating control |
| End Connection | FxF |
| Fail Safe | Yes |
| Flow Characteristic | Modified Equal-percentage |
| Flow Coefficient Cv | 10.0000 |
| Leakage Rate | Class IV (0.01% of Cv) |
| Material Inside Set | Body Trim: Brass;Stem: Stainless Steel ASTM A582 Type 303;Packing: Ethylene propylene O-ring;Seat: metal-to-metal |
| Material Valve Body | Bronze |
| Max Differential Pressure Liquid | 25 psi |
| Max Differential Pressure Steam | 15 psi |
| Max Inlet Pressure Absolute Liquid | 400 psi |
| Max Inlet Pressure Absolute Steam | 15 psi |
| Medium | Water;Water with anti-freeze |
| Medium Temperature | 35…250 ºF |
| Medium Temperature F Max | 250 ºF |
| Medium Temperature F Min | 35 ºF |
| Normally Open Normally Closed | Normally Open |
| Operating Voltage | 24 VAC |
| Permissible Operating Pressure | Max. differential pressure for modulating service: 25 psi (173 kPa) |
| Port Configuration | 2-Way Normally open |
| Positioning Time | 30 s |
| Power Consumption | 3.4 VA |
| Spring Return Function | Spring return functionality |
| Stroke | 7/32 in |
| Supply Voltage | 24 VAC |
| Trim Material | Brass |
| Valve Body Style | Stroke-Globe |
| Valve Size | 1 in |
| Valve Type | Two-way |
Specifications
| SKU | CS3745852 |
|---|---|
| MPN | 366-02046 |
| UPC/EAN | 4034106383824 |
