Siemens 335-04315-25
SKU: CS3745487MPN: 335-04315-25UPC/EAN: 4034106381301
PICV, 1-½”, NO, 25 GPM max flow preset, SAY Actuator, 0-10V or 4-20 mA, NSR
$953.91
Unit2 in stock
Product Details
Pressure Independent Control Valve, 1-½ inch, Normally Open, preset to 25 GPM maximum flow (field adjustable), with 24 Vac Electronic SAY Actuator, 0-10V or 4-20 mA, NSR
Attributes
| Actuation Style | Linear |
| Actuator Type | Electronic |
| Close Off Pressure | 100 psi |
| Connecting Thread | Internal NPT thread |
| Control Signal | 0…10 Vdc |
| End Connection | NPT |
| Fail Safe | No |
| Flow Characteristic | Linear |
| Material Inside Set | Plug: Brass;Stem, spring: Stainless Steel;Seals: EPDM 281 O-ring |
| Material Valve Body | Ductile Iron |
| Max Differential Pressure Liquid | 58 psi |
| Max Gpm | 40 gpm |
| Max Inlet Pressure Absolute Liquid | 400 psi |
| Mechanical Design | 25 GPM max. flow preset |
| Medium | Water;Water with anti-freeze |
| Medium Temperature | 34…248 ºF |
| Medium Temperature F Max | 248 ºF |
| Medium Temperature F Min | 34 ºF |
| Min Gpm | 10 gpm |
| Normally Open Normally Closed | Normally Open |
| Operating Voltage | 24 VAC;24 VDC |
| Permissible Operating Pressure | 58 psi |
| Port Configuration | 2-Way Normally open |
| Positioning Time | 30 s |
| Power Consumption | 8 VA |
| Preset Gpm | 25 gpm |
| Spring Return Function | Non-spring return functionality |
| Stroke | ⅝ in |
| Supply Voltage | 24 VAC |
| Trim Material | Brass |
| Valve Body Style | Stroke-Globe |
| Valve Size | 1.5 in |
| Valve Type | Two-way |
Specifications
| SKU | CS3745487 |
|---|---|
| MPN | 335-04315-25 |
| UPC/EAN | 4034106381301 |
You may also like
Siemens 335-04315-20
$953.91UnitSiemens 335-04315-35
$953.91UnitSiemens 335-04315-15
$953.91UnitSiemens 335-04315-40
$953.91UnitSiemens 335-04315-30
$953.91UnitSiemens 335-04316-45
$1,105.02UnitSiemens 335-04316-50
$1,105.02UnitSiemens 335-04316-40
$1,105.02UnitSiemens 335-04316-30
$1,105.02Unit

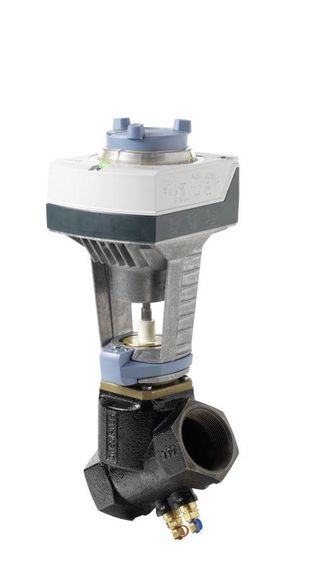

Siemens 335-04316-35
$1,105.02Unit

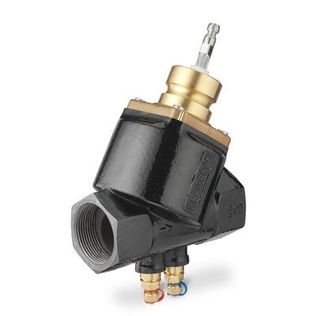

Siemens 599-04315-25
$481.67Unit

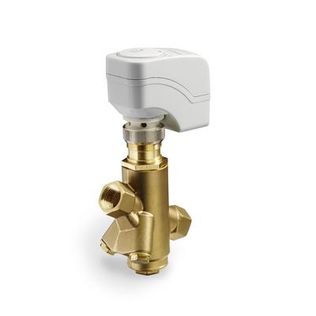

Siemens 231-04301-4
