Siemens 267-05991

Name: Siemens 267-05991
Brand: Siemens Building Technologies
SKU: CS3745366
Price: 1641.81 USD
Availability: InStock

SKU: CS3745366MPN: 267-05991UPC/EAN: 4034106365400

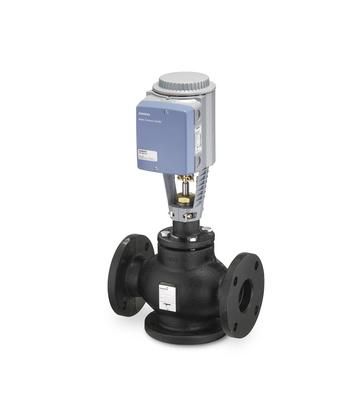

Valve assy 2W NC 3”, 100Cv, Eq Pct Brass Trim Flanged Prop El-Hydraul Act NSR

Siemens Building Technologies 267-05920, 267-05921, 267-05930, 267-05931, 267-05940, 267-05950, 267-05951, 267-05961, 267-05970, 267-05971, 267-05980, 267-05981, 267-05990, 267-05991, 267-06040

$1,641.81

Unit

1 in stock

Quantity

remove

add

Product Details

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), non-spring return, 24 Vac electro-hydraulic actuator. The 2-way, normally closed, 3-inch, 100 Cv valve assembly with ¾-inch stroke is ANSI Class 125 and has an equal percentage characteristic, brass trim, and flanged end connections.

Attributes

Actuator Type	Electronic
Close Off Pressure	22 psi
Connecting Thread	Direct-coupled universal bonnet
Control Signal	0…10 Vdc
End Connection	Flanged
Fail Safe	No
Flow Characteristic	Equal-percentage
Flow Coefficient Cv	100.0000
High Temperature	NO
Leakage Rate	Class IV (0…0.01% of volumetric flow)
Material Inside Set	Body Trim: Bronze;Stem: Stainless steel ASTM A582 Type 303;Plug: Bronze;Seat: Single seat;Normal Duty Packing: EPDM O-rings
Material Valve Body	Cast iron ASTM A126 Class B
Max Differential Pressure Liquid	25 psi
Max Differential Pressure Steam	15 psi
Max Inlet Pressure Absolute Liquid	200 psi
Max Inlet Pressure Absolute Steam	15 psi
Medium	Saturated steam;Water;Water with anti-freeze
Medium Temperature	20…250 ºF
Medium Temperature F Max	250 ºF
Medium Temperature F Min	20 ºF
Normally Open Normally Closed	Normally Closed
Operating Voltage	24 VAC
Permissible Operating Pressure	Liquid, max: 173 kPa; Liquid, max: 25 psi; Steam, max: 103 kPa; Steam, max: 15 psi
Port Configuration	2-Way Normally closed
Positioning Time	Open:30 s;Close:15 s
Power Consumption	17 VA
Rangeability	100:1
Spring Return Function	Non-spring return functionality
Stroke	20 mm;0.75 ” mm
Supply Voltage	24 VAC
Trim Material	Brass
Valve Body Style	Stroke-Globe
Valve Size	3 in
Valve Type	Two-way
