Siemens 171C-10602-1.9-1.9

Name: Siemens 171C-10602-1.9-1.9
Brand: Siemens Building Technologies
SKU: CS3744228
Price: 577.46 USD
Availability: OutOfStock

SKU: CS3744228MPN: 171C-10602-1.9-1.9

6W ball valve 1”, A\=1.9Cv, B\=1.9Cv, 58psi close-off, female NPT, 0-10V NSR

Siemens Building Technologies 171C-10602-1.9-1.9, 171C-10602-1.9-2.9, 171C-10602-1.9-4.0, 171C-10602-1.9-4.7, 171C-10602-2.9-1.9, 171C-10602-2.9-2.9, 171C-10602-2.9-4.0, 171C-10602-2.9-4.7, 171C-10602-4.0-1.9, 171C-10602-4.0-2.9, 171C-10602-4.0-4.0, 171C-10602-4.0-4.7, 171C-10602-4.7-1.9, 171C-10602-4.7-2.9, 171C-10602-4.7-4.0

$577.46

Unit

Available on backorder

Quantity

remove

add

Product Details

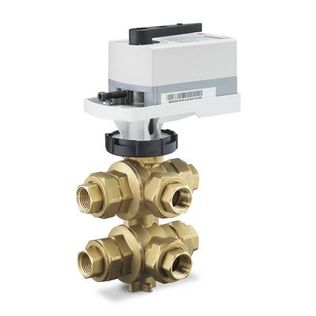

This 1 inch 599 Series 6-way ball valve with a 0-10 Vdc control fail-in-place actuator assembly is used to control hot or chilled water and up to 50% Glycol solution in chilled/heated beams and other four pipe systems using a single valve and actuator. 58 psi close-off with 0% leakage. Source A \= 1.9 Cv and Source B \= 1.9 Cv, linear flow characteristic and chrome-plated brass ball and stainless steel stem and Cv washers. There is a handle for manual operation of the valve in the event of power failure.

Attributes

Actuation Style	Rotary
Actuator Type	Electronic
Auxiliary Switch	No
Close Off Pressure	58 psi
Connecting Thread	1 inch NPT
Control Signal	0…10 Vdc
End Connection	NPT union, female
Fail Safe	No
Flow Characteristic	Linear
Leakage Rate	0%
Material Inside Set	Ball: Chrome-plated brass;Ball Seals: PTFE;Stem: Stainless Steel;Stem Seals: EPDM O-rings
Material Valve Body	Brass
Max Differential Pressure Liquid	29 psi
Max Inlet Pressure Absolute Liquid	232 psi
Medium	Water;Water with anti-freeze
Medium Temperature	35…250 ºF
Medium Temperature F Max	250 ºF
Medium Temperature F Min	35 ºF
Operating Voltage	24 VAC
Permissible Operating Pressure	29 psi
Port Configuration	6-Way Changeover
Positioning Time	90 s
Power Consumption	3.3 VA
Source A Cv	1.8999999761581
Source B Cv	1.8999999761581
Spring Return Function	Non-spring return functionality
Supply Voltage	24 VAC
Trim Material	Chrome-plated Brass
Valve Body Style	Rotary-Ball
Valve Size	1 in
Valve Type	Six-way
