Siemens 171B-10328

Name: Siemens 171B-10328
Brand: Siemens Building Technologies
SKU: CS3744055
Price: 446.85 USD
Availability: OutOfStock

SKU: CS3744055MPN: 171B-10328UPC/EAN: 804766004353

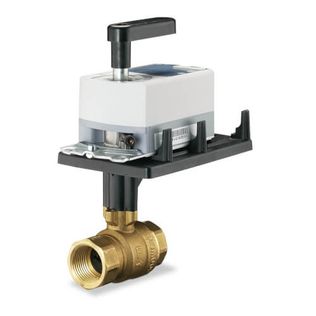

2W 2”, 63Cv ball valve assembly, chrome-plat brass ball, brass stem, float NSR

Siemens Building Technologies 171A-10312S, 171A-10313S, 171A-10314, 171A-10314S, 171A-10315, 171A-10315S, 171A-10316S, 171A-10317S, 171A-10318, 171A-10318S, 171A-10319, 171A-10319S, 171A-10320S, 171A-10321S, 171B-10322

$446.85

Unit

Available on backorder

Quantity

remove

add

Product Details

This 599 Series 2-way ball valve with a floating control fail-in-place actuator assembly, providing 200 psi close-off, is used to control hot or chilled water and up to 50% Glycol solution in convectors, fan coil units, unit conditioners, radiation and reheat coils. This 2-inch valve is 63 Cv, equal percentage flow characteristic, with chrome-plated brass ball and brass stem, and an operating handle that can manually operate the valve in the event of power failure.

Attributes

Actuation Style	Rotary
Actuator Type	Electronic
Auxiliary Switch	No
Close Off Pressure	200 psi
Control Signal	Floating control
End Connection	NPT
Fail Safe	No
Flow Characteristic	Equal-percentage
Flow Coefficient Cv	63.0000
Leakage Rate	ANSI Class IV
Material Inside Set	Ball: Chrome-plated brass;Ball Seals: Glass filled PTFE with EPDM O-rings;Stem: Brass;Stem Seals: EPDM O-rings
Material Valve Body	Brass
Max Differential Pressure Liquid	200 psi
Max Inlet Pressure Absolute Liquid	400 psi
Medium	Water with anti-freeze;Water
Medium Temperature	35…250 ºF
Medium Temperature F Max	250 ºF
Medium Temperature F Min	35 ºF
Operating Voltage	24 VAC
Port Configuration	2-Way Normally open
Spring Return Function	Non-spring return functionality
Supply Voltage	24 VAC
Trim Material	Chrome-plated Brass
Valve Body Style	Rotary-Ball
Valve Size	2 in
Valve Type	Two-way
