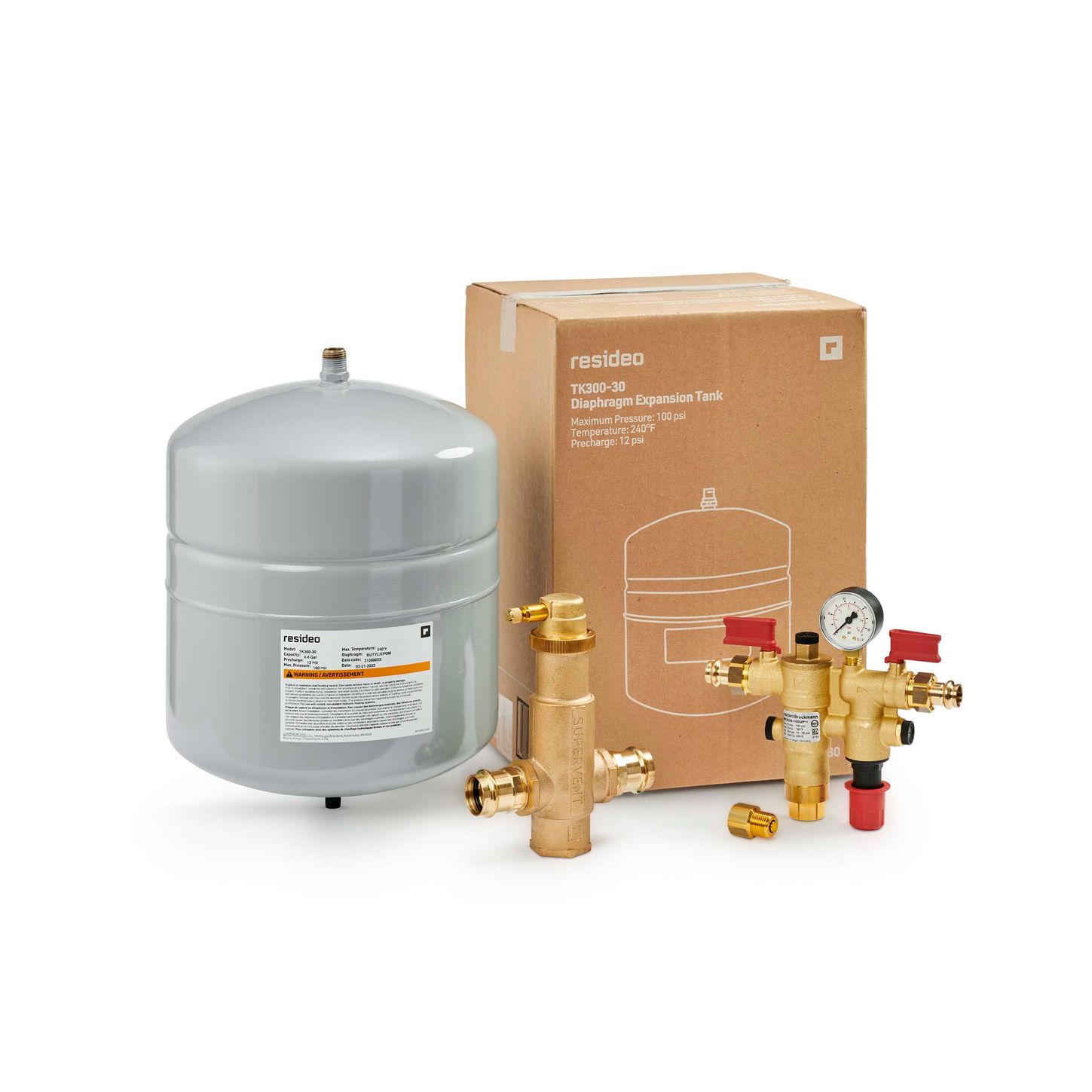

Resideo TK30PV125PNKP

Combo Tank Kit with Press Supervent

This item incudes: TK300-30, PV125P, SCV-050, and NK300S-100UP

Rather than taking the time to locate and purchase the pieces separately, the boiler trim kit gives you all the accessories needed for a boiler installation. Each kit includes an Expansion Tank, a Boiler Feed Combination Valve, a SuperVent Air Eliminator or an Air Purger/Vent, and check valves. It’s a complete, time-saving solution in one handy box — just add water.

Product Features

• Expansion Tank: Welded, not clamped, for longer, leak-proof life.
• Check Valves: Allows replacement of expansion tank and/or air vent without draining the heating system.
• SuperVent Air Eliminator or Air Purger: Optimal air removal from hydronic systems.
• Boiler Fill Valve (NK300S shown): Double check backflow preventer/boiler feed valve combo (NK300S) or DialSet boiler fill valve and dual check atmospheric backflow preventer (FM911).

Product Specifications

• Size: SuperVent 1”, Tank ½”
• Connection Type: Tank: Male NPT, SuperVent: ProPress
• Height: 15-½”
• Volume: 4.4 gal. (16.7 L)
• Weight: 16 lb (7.3 kg)
