Dwyer 3200G-3-FM-1-1-LCD
SKU: CS3739019MPN: 3200G-3-FM-1-1-LCDAlternate Part #: 124766-06
3200G-3-FM-1-1-LCD XMTR 0-725
$1,953.32
UnitAvailable on backorder
Product Details

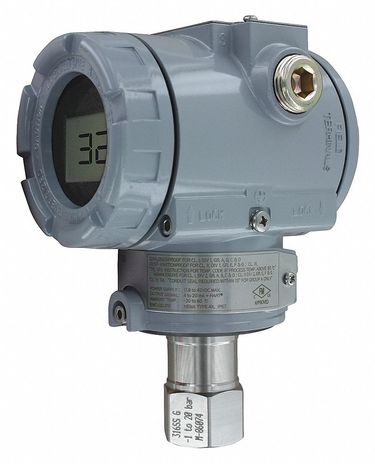

Smart pressure transmitter, range 0 to 725 psi with LCD display.
Attributes
| Accuracy | ±0.075% FS (@ 20°C). |
| Agency Approval | ATEX, CE, FM. |
| Agency Approvals | ATEX, CE, FM. |
| Commodity Code | R6AC |
| Damping Time | 0.25 to 60 seconds. |
| Display | Optional: 5 digit LCD. |
| Electrical Connection | Two ½” female NPT conduit, screw terminal. |
| Enclosure Rating | NEMA 4X (IP66) and explosion-proof for Class I, Div I Groups A, B, C and D. |
| Loop Resistance | Operation: 0 to 1500 Ω HART® Communication: 250 to 500 Ω. |
| Output Signal | 4 to 20 mA / HART® Communication. |
| Power Requirement | 11.9 to 45 VDC. |
| Process Connection | ½” female NPT. |
| Process Connections | ½” female NPT. |
| Rangeability | 100:1 turn down. |
| Response Time | 0.12 seconds. |
| Service | Compatible gases, steam, liquids or vapors. |
| Stability | ±0.125% FSO/yr. |
| Thermal Effect | ±0.125% span/32°C. |
| Wetted Material | 316L SS. |
Specifications
| SKU | CS3739019 |
|---|---|
| MPN | 3200G-3-FM-1-1-LCD |
| Alternate Part # | 124766-06 |
