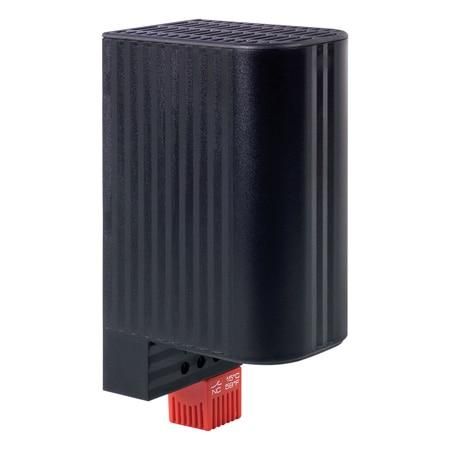

Omega CSF06021
SKU: CS3715863MPN: CSF06021
Touch-Safe Enclosure Heater with Thermostat 50 to 150W
Product Details
- Low Surface Temperature
- Integrated Thermostat
- Quick Mounting Due to DIN Clip
- Double Insulated (Plastic)
Attributes
| Width | 60 mm |
| Height | 150 mm |
| Length | 90 mm |
| Weight | 0.5 kg |
| Series ID | CSF060-Series |
| Protection | II (Double insulated) |
| Wire Gauge | 16 AWG |
| Form factor | DIN Clip for 35 mm |
| Current, Max | 2.5 A |
| Heater Power | 150 W |
| Supply Voltage | 120/240 Vac |
| Fitting position | Vertical |
| Housing Material | Plastic |
| Country of Origin | Germany |
| Enclosure Ratings | IP20, NEMA Type 2 |
| Starting Temperature | 5 °C |
| Electrical Connection | Screw Terminal |
| Air Outlet Temperature | 145 °C |
| Switch-Off Temperature | 15 °C |
| Heating Element Material | PTC resistor |
| Storage Temperature, Max | 70 °C |
| Storage Temperature, Min | -45 °C |
| Surface Temperature Note | <80°C (176°F), except upper protective grille |
| Surface Temperature, Max | 80 °C |
| Operating Temperature, Max | 70 °C |
| Operating Temperature, Min | -40 °C |
Specifications
| SKU | CS3715863 |
|---|---|
| MPN | CSF06021 |
