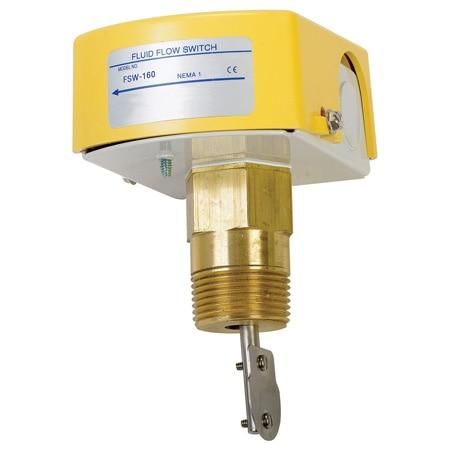

Omega FSW-160

Name: Omega FSW-160
Brand: Omega
SKU: CS3690872
Price: 296.74 USD
Availability: OutOfStock

SKU: CS3690872MPN: FSW-160

Heavy Duty Paddle Flow Switch

$296.74

Unit

Available on backorder

Quantity

remove

add

Documents

Accuracy	± 1 %
Materials	Stainless Steel, Brass
Series ID	FSW-160-Series
Hysteresis	10% at upper end of flow range, 30% at lower end of flow range (∆ Flow Rate to Activate/ Deactivate Switch)
Sensitivity	10% @ upper end of range; 30% @ lower end of range
Switch Type	SPDT NO/NC, Selectable
Paddle Length	1.3 in
Switch Rating	15 A
Pipe Size, Max	0 in
Pipe Size, Min	0 in
Supply Voltage	125 / 250 Vac
Country of Origin	United States
Enclosure Ratings	IP10, NEMA Type 1
Pressure Drop, Max	1 psi
Switch Rating Note	15 A, ½ hp at 125 or 250 Vac 0.5 A at 125 Vdc (tungsten lamp) 0.25 A @ 250 Vdc (tungsten lamp)
Media Compatibility	Liquids
Electrical Connection	½ in NPS female Conduit with Screw Terminal block
Linear Flow Rate, Max	0 ft/s
Linear Flow Rate, Min	0 ft/s
Operating Pressure Note	Operating Pressure: 8.6 bar (125 psi) @ 21°C (70°F), 3.4 bar (50 psi) @ 100°C (212°F)
Operating Pressure, Max	200 psi
Process Connection Size	1 in
Process Connection Type	NPT Male
Process Temperature, Max	121 °C
Process Temperature, Min	0 °C
Volumetric Flow Rate, Max	8 GPM
Volumetric Flow Rate, Min	4 GPM
Operating Temperature, Max	66 °C
Operating Temperature, Min	0 °C
