Turck RSM RKM 56-6M/S3059
SKU: CS3688312MPN: RSM RKM 56-6M/S3059Alternate Part #: U-46202
U-46202 - CORD,⅞IN.MINIFAST
$124.31
UnitAvailable on backorder
Product Details
Power Cable
Extension Cable
- Power cable: 5 × 16 AWG
- Jacket material: TPE,
- Jacket color: yellow
- Jacket diameter: 10 mm
- UL, CSA approval
- RoHS compliant
- Protection class IP67
- ⅞” female, straight
- ⅞” male, straight
- Cable length: 6.0 m
- ⅞” Male, Straight, 5-pin
- ⅞″ Female, Straight, 5-pin
- Power Tray/Exposed Run/Direct Burial Cable
- Yellow TPE jacket, 5X16 AWG
- Sunlight Resistant
- -40 Cold Bend Rating
- Oil Resistant
- Flame Ratings: UL 1685 FT4, UL 1061, CSA FT1, CSA FT4
Attributes
| Application | Power (>11 Amps) |
| Approvals | UL, CSA |
| Cable Diameter | Ø 10 mm |
| Cable Jacket | TPU, Yellow |

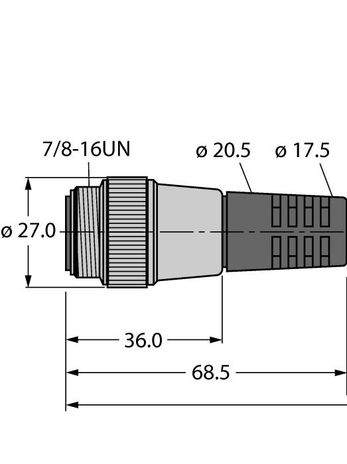

| Connector A | Male, ⅞″-16 UN, Straight |
| Connector B | Female, ⅞″-16 UN, Straight |
| Connector Body | Plastic, TPU, Yellow |
| Coupling Nut | Brass, CuZn, Nickel-plated |
| Current | 10 A |
| Customs Tariff Number | 85444290900.0000 |
| Design | Double-ended |
| Ecl Ss Code V5 1 4 | 27230209 -/- Current supply, voltage |
| Number Of Conductors | 5.0000 |
| Number Of Contacts | 5 |
| Protection Class When Coupled | IP67 |
| Special Feature | Weld spatter resistantWeldlife CableTray cableExposed run |
| Voltage | 600 V |
Specifications
| SKU | CS3688312 |
|---|---|
| MPN | RSM RKM 56-6M/S3059 |
| Alternate Part # | U-46202 |
