Schneider Electric VS-7263-804-4-01

SKU: CS3676178MPN: VS-7263-804-4-01

SmartX, Globe Valve Assembly, ½ in, 2-Way, Stem Up Close, 0.4 cv, MF51-7103-100 Spring Return Proportional Actuator

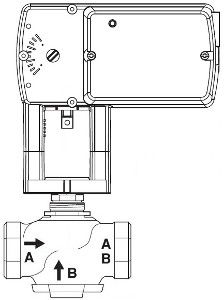

Schneider Electric VA-7223-804-4-01, VA-7223-804-4-02, VA-7223-804-4-03, VA-7223-804-4-04, VA-7223-804-4-05, VA-7223-804-4-06, VA-7223-804-4-07, VA-7223-804-4-08, VA-7263-804-4-04, VA-7263-804-4-06, VS-7223-804-4-01, VS-7223-804-4-02, VS-7223-804-4-03, VS-7223-804-4-04, VS-7223-804-4-05
$710.23
Unit
1 in stock
remove
add

Product Details

Valve Assembly:

  • Body Size: ½ in
  • Configuration: 2-Way
  • Type: Globe
  • Body Pattern: Straightway
  • Connection: NPT
  • Stem Flow Action: Stem up A closed
  • Material Trim: Stainless Steel
  • Flow Coefficient: 0.4 cv
  • Close-Off Pressure: 250 PSI
  • Actuator Type: Electric
  • Control Signal: Proportional
  • Control Signal Range: 2 to 10 VDC
  • Loss of Power Type: Spring Return
  • Loss of Power Position: Normally closed
  • Power Input Voltage: 24 VAC/VDC, 20 to 30 VDC
  • Leads and Connections: 3 ft Plenum
  • Force: 105 lbf
  • Mechanical Movement: Linear
  • Protection Rating: NEMA 2

Assembly Components:

  • Valve Body: VB-7263-0-4-01
  • Valve Range: Venta
  • Valve Linkage: None, tool-less connection
  • Actuator: MS51-7103-100
  • Actuator Range: SmartX Actuator

Attributes

Us Rated Supply Voltage 20…30 V DC 24 V AC/DC
Actuator linear
Ambient Air Temperature For Operation -30-60 °C
Ambient Air Temperature For Storage -40-71 °C
Analogue Input Range 2…10 V DC
Body Material bronze
Control Type automatic reset
Current Consumption 140 mA
Electrical Insulation Class class II
Force Lbf 105 lbf
Force N 468 N
Motor Type brushless DC motor
Operating Fluid Temperature -7-171 °C
Product Destination globe valve
Product Or Component Type valve-actuator assembly
Relative Humidity 5-95 % non-condensing
Saturated Steam Temperature -7-171 °C
Satured Steam Inlet Pressure 100 psi
Seat Leakage Port A: Class IV (0.01 %) Port A: Class V
Seat Material Port A: stainless steel 316
Seating Seal Material PTFE (polytetrafluoroethylene)
Switch Function No
Targeted Region North America.
Taxoclass Id PTC_D54038_XXX

Specifications

SKUCS3676178
MPNVS-7263-804-4-01
