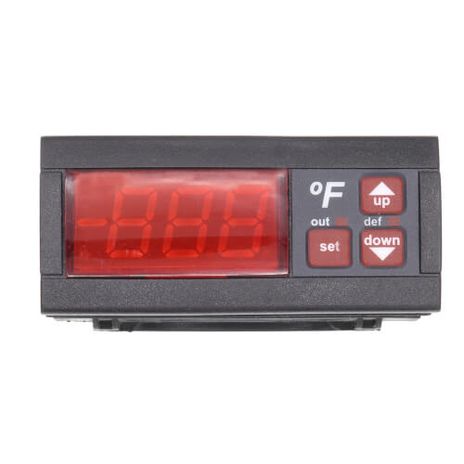

Dwyer TS-13010
SKU: CS3671827MPN: TS-13010Alternate Part #: 124232-00
TS-13010 TEMP SW 3 DGT 110VAC
$158.05
Unit4 Units Available at Factory - Ships Same/Next Business Day
Product Details
Digital temperature switch, 110 VAC, 16 A, °F display.
Attributes
| Accuracy | ±1°C. |
| Agency Approval | CE, ULc, UL. |
| Agency Approvals | CE, ULc, UL. |
| Commodity Code | R0CA |
| Control Type | ON/OFF. |
| Display | 3-digit, red, ½” digits. |
| Front Panel Rating | IP64. |
| Horsepower Rating Hp | 1 HP for 16A. |
| Input | 1.5-inch (4 cm) thermistor (1000Ω @ 25°C) with 5 ft (1.5 m) cable. |
| Memory Backup | Nonvolatile memory. |
| Output | 16A SPDT relay @ 250 VAC resistive. |
| Power Requirement | 110 VAC, 230 VAC or 12 VAC/VDC (depending on model). 4VA (230V). |
| Probe Range | -58 to 302°F (-50 to 150°C). |
| Resolution | 1°. |
| Storage Temperature | -4 to 176°F (-20 to 80°C). |
Specifications
| SKU | CS3671827 |
|---|---|
| MPN | TS-13010 |
| Alternate Part # | 124232-00 |
