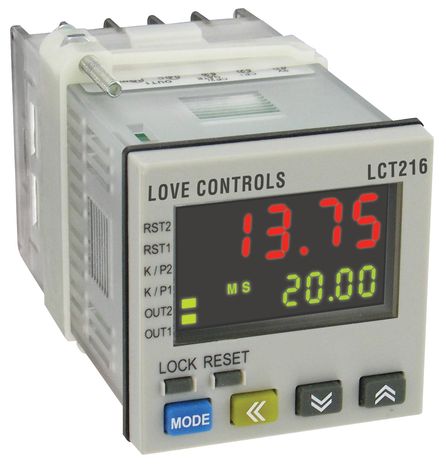

Dwyer LCT216-110
SKU: CS3637364MPN: LCT216-110Alternate Part #: 124708-01
LCT216-110 CTR/TIM/TACH W/RELA
$148.13
UnitAvailable on backorder
Product Details
Digital timer/tachometer/counter, relay output.
Attributes
| Commodity Code | R0GA |
| Compliance | CE, UL. |
| Control Output Rating | (Out 1) Relay: SPST 5A at 250 VAC, Transistor: NPN Open collector 100 mA / 30 VDC residual voltage = 1.5 VDC max; (Out 2) Relay: SPST 5A at 250 VAC, Transistor: NPN Open collector 100 mA / 30 VDC residual voltage = 1.5 VDC max. |
| Display | Two-line 6 digit negative transmissive LCD display. |
| Humidity Conditions | 35 to 85% RH (non-condensing). |
| Input | Dry contact, PNP, or NPN. |
| Inputs | Dry contact, PNP, or NPN. |
| Internal Power Supply | 12 VDC ±10%, 100 mA. |
| Operating Temperature Range | 32 to 122°F (0 to 50°C). |
| Operating Temperature Ranges | 32 to 122°F (0 to 50°C). |
| Power Consumption | Less than 10 VA. |
| Power Requirement | 100 to 240 VAC 50 / 60 Hz. |
| Reset Time | 0.001 s. minimum. |
| Timing Functions | 14 pre-programmed timing functions. |
Specifications
| SKU | CS3637364 |
|---|---|
| MPN | LCT216-110 |
| Alternate Part # | 124708-01 |
